11

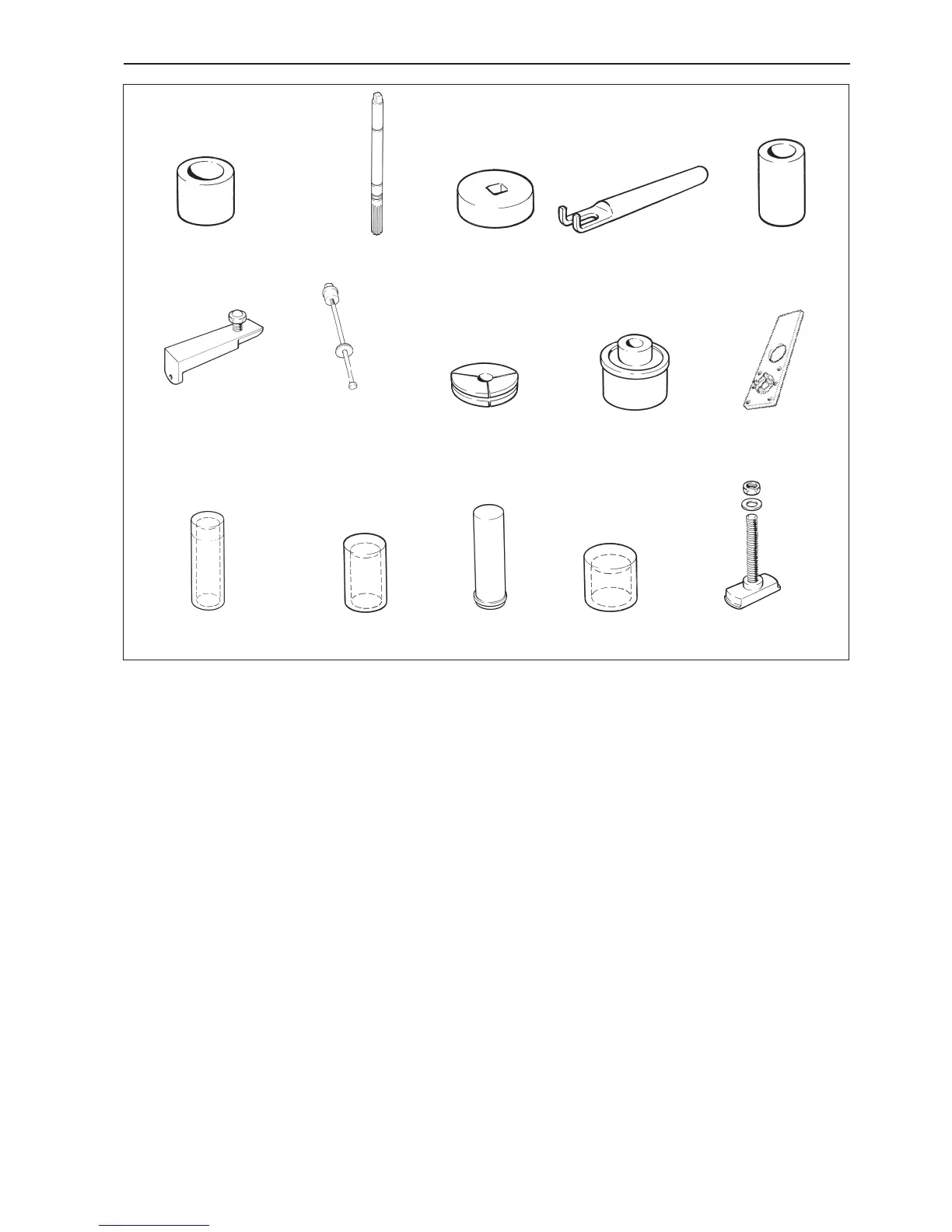

Special tools
884733-7 Drift. Installation of bearings, removal of
gear wheels.
884735-2 Tool. Checking of marking pattern.
884736-0 Wheel. For checking pre-load.
884738-6 Brake tool. Checking of marking pattern.
884739-4 Counterhold
884743-6 Removal of vertical shaft. Used together
with 884744 and 884745
884746-9 Installation of needle roller bearing. Used
together with 884747 and 884748
884750-1 Expanding mandrel. Removal of outer
bearing race.
884752-7 Drift. Installation of seal rings in rear
bearing housing.
884753-5 Fixture, 120S
884754-3 Drift. Installation of bearing.
884755-0 Drift. Installation of roller bearing, lower
gear housing.
884756-8 Drift. Installation of outer bearing race in
rear bearing housing.
884757-6 Drift. Installation of outer bearing race in
lower gear housing.
884761-8 Extractor. Used together with tool 884721
884743
884744
884745
884746
884747
884748 884750 884752 884753
884754 884755 884756 884757 884761
884735
884733
884736
884738
884739
