Volvo Penta MS2A-E - Bearing and Tubular Shaft, Assembly

56
Repair of MS2V reverse gear, angle gear

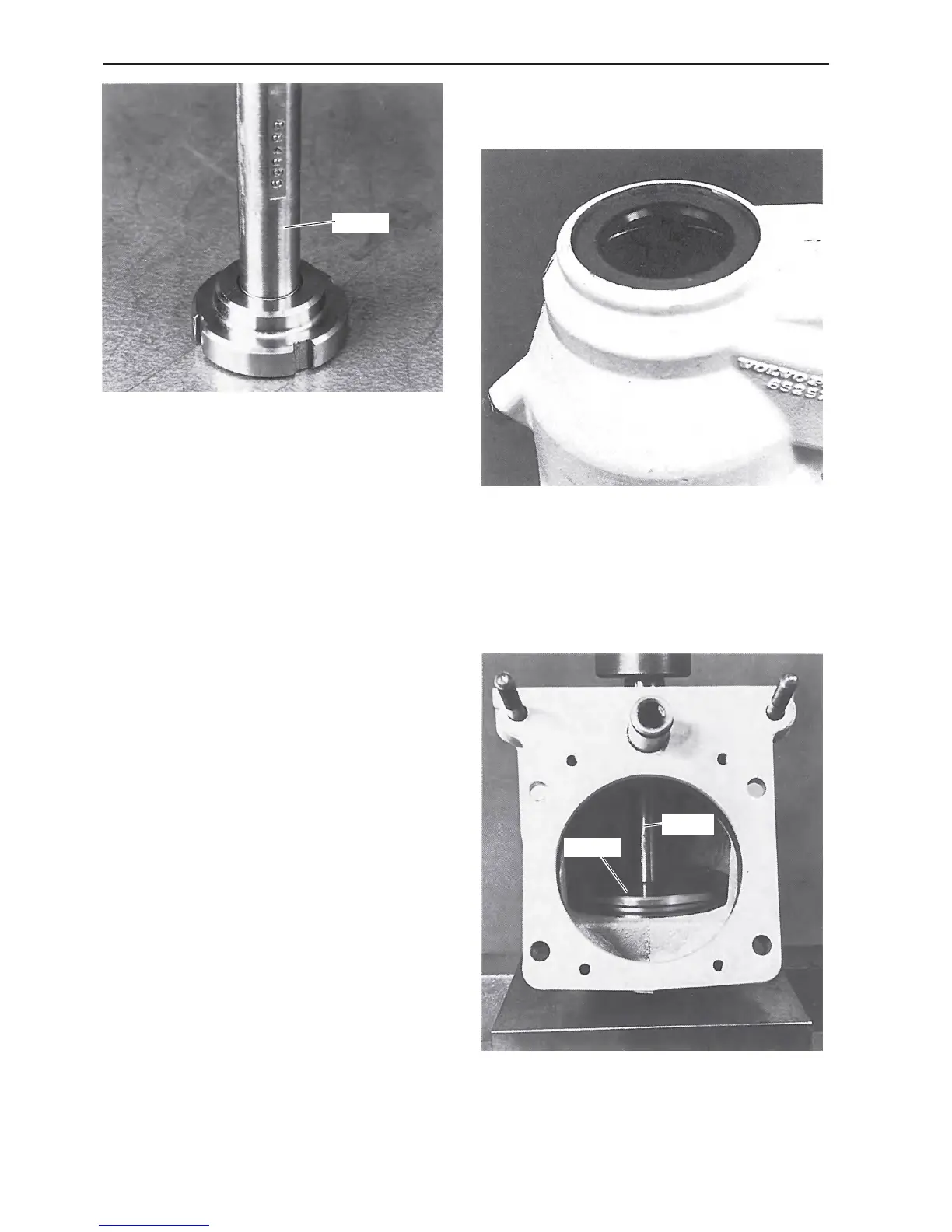

21. Install a new needle roller bearing in the pinion nut,
using mandrel 884859.
Apply thread locking fluid, Volvo Penta part no.
1161053-2, on the threads and install the nut.
Tightening torque: 140 Nm (103.26 lbf ft)
884859
Bearing and tubular shaft,
assembly
22. Apply sealant, Volvo Penta part no. 1161099-5 to
the gearbox housing and install a new seal ring. Use
tool no. 884834 and shaft 884859.
Wipe some grease, Volvo Penta part no. 828250-1 on
the lip of the seal ring.
23. Put shims with a total thickness of 0.70 mm in the
housing and install the bearing race with tool 884834
and shaft 884859.
884859
884834
