Volvo Penta MS2A-E - Angle Drive, Final Assembly

60
Repair of MS2V reverse gear, angle gear

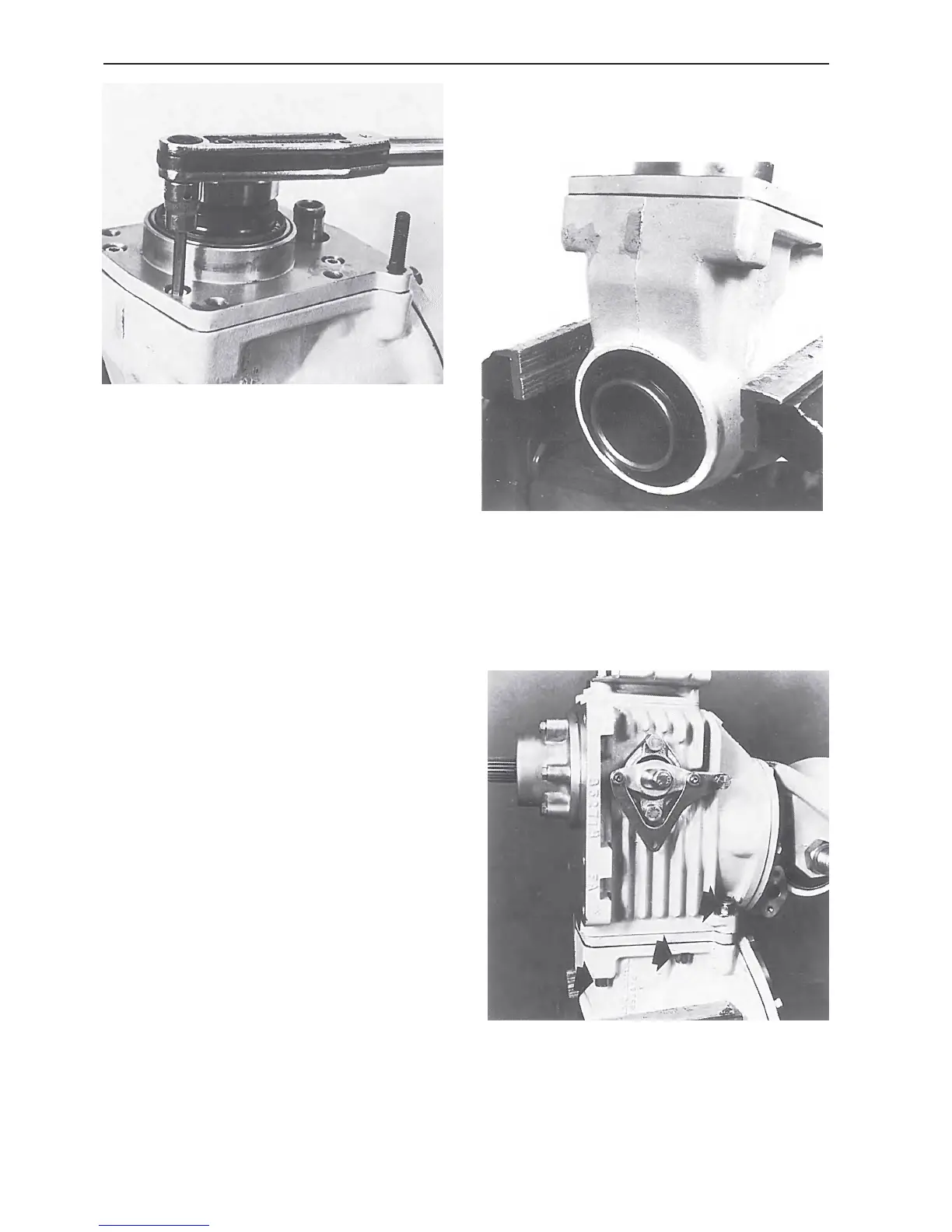

36. Install the pinion in the gearbox housing together
with a new O-ring.
Tightening torque: 9 Nm (6.64 lbf ft)
Angle drive,
final assembly
37. Install the tubular shaft in the gearbox housing to-
gether with a new O-ring.
Tightening torque: 25 Nm (18.44 lbf ft)
Install a new seal ring on the tubular shaft.
38. Assemble the angle drive and reverse gear.
Use a new O-ring.
Tightening torque: 28 Nm (20.65 lbf ft).
