51
4. Undo the four socket cap screws which retain the
pinion in the housing, and disassemble the pinion.
Save the shims between the gear housing and the pin-
ion.
Repair of MS2V reverse gear, angle gear
This section only refers to repair of the angle gear and
its sub-components. Please refer to the MS2 informa-
tion for general information about the reverse gear.

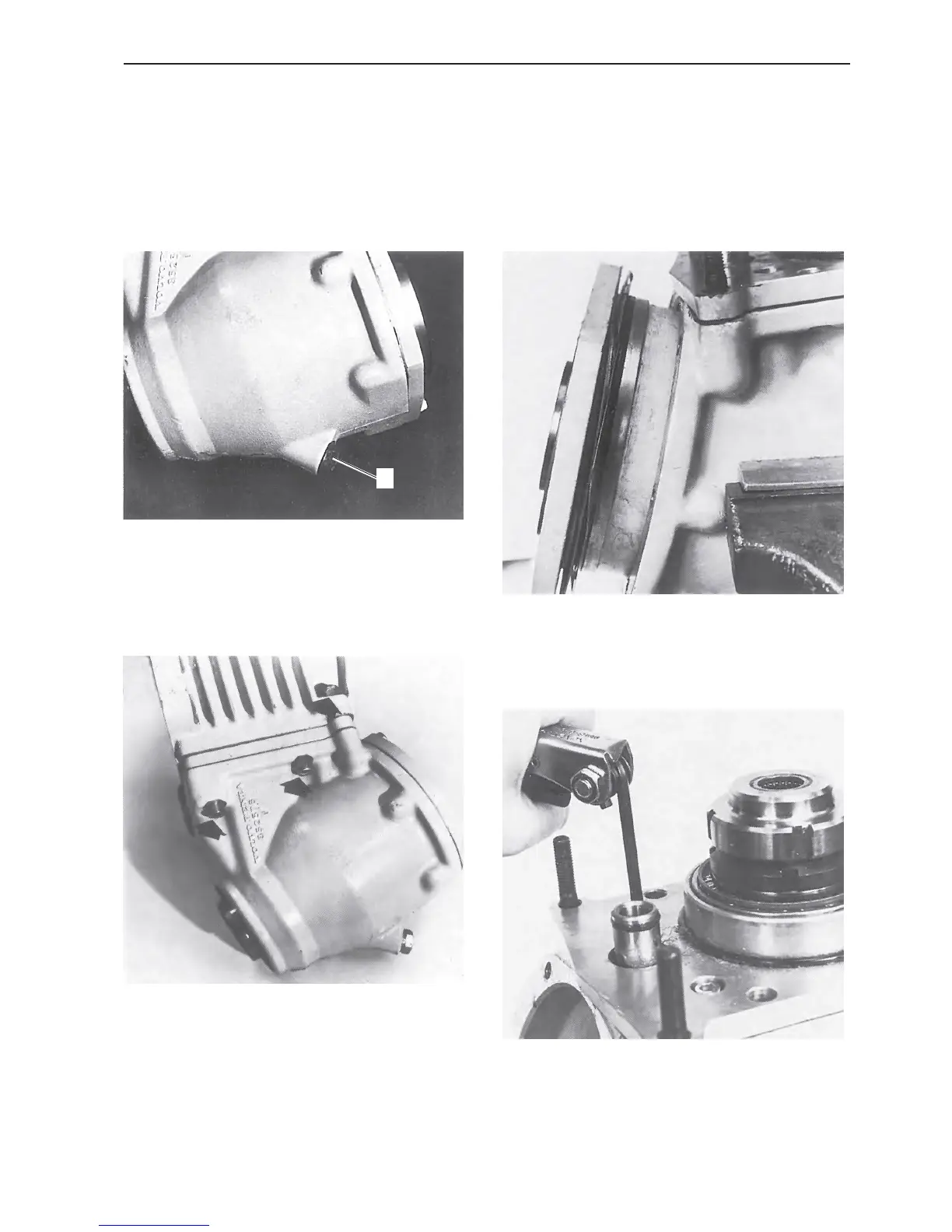

1. Clean the outside of the reverse gear. Remove the
drain plug (1) and drain the oil.
2. Undo the 4 nuts, the 2 socket cap screws and re-
move the angle gear from the reverse gear.
Tubular shaft,
disassembly
3. Undo the six screws which hold the tubular shaft in
the housing, and drive out the tubular shaft with a lead
hammer etc. Save the shims between the cover and
the gear housing.
1
