78
Repair - lower gear housing, sailboat drive

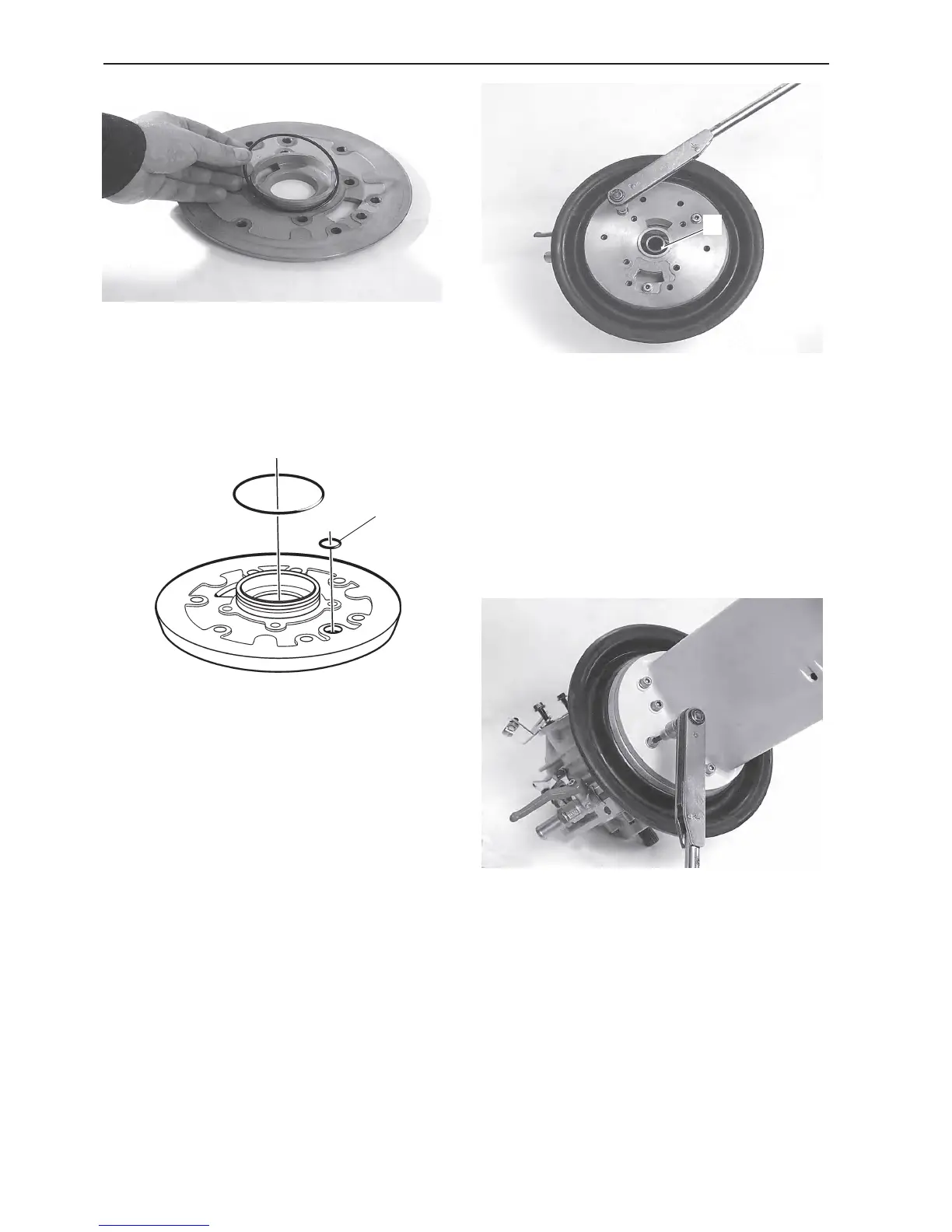

Oil and install a new O-ring (1) in the cutout in the
adapter plate.
74. Fit the gear housings together. Apply MoS2 based
grease, Volvo Penta part no. 1161029-2 to the socket
cap screws. Install the screws, 10 pcs. The two long
screws should be located by the rear edge.
Put washers under the screw heads and distribute the
screws with holes in the screw heads so that there are
two on each side.
Tightening torque: 30 Nm (22.13 lbf ft).
73. Install the adapter plate on the upper gear hous-
ing. Apply MoS2 based grease, Volvo Penta part no.
1161029-2 to the three socket cap screws. Put wash-
ers on the socket cap screws and use a torque
wrench to tighten them. Torque the screws alternately.
Tightening torque: 30 Nm (22.13 lbf ft).
Install the slipping clutch (1).
72. Oil and install a new O-ring on the adapter section
neck.
Reverse installed drive (180°)
1
1
