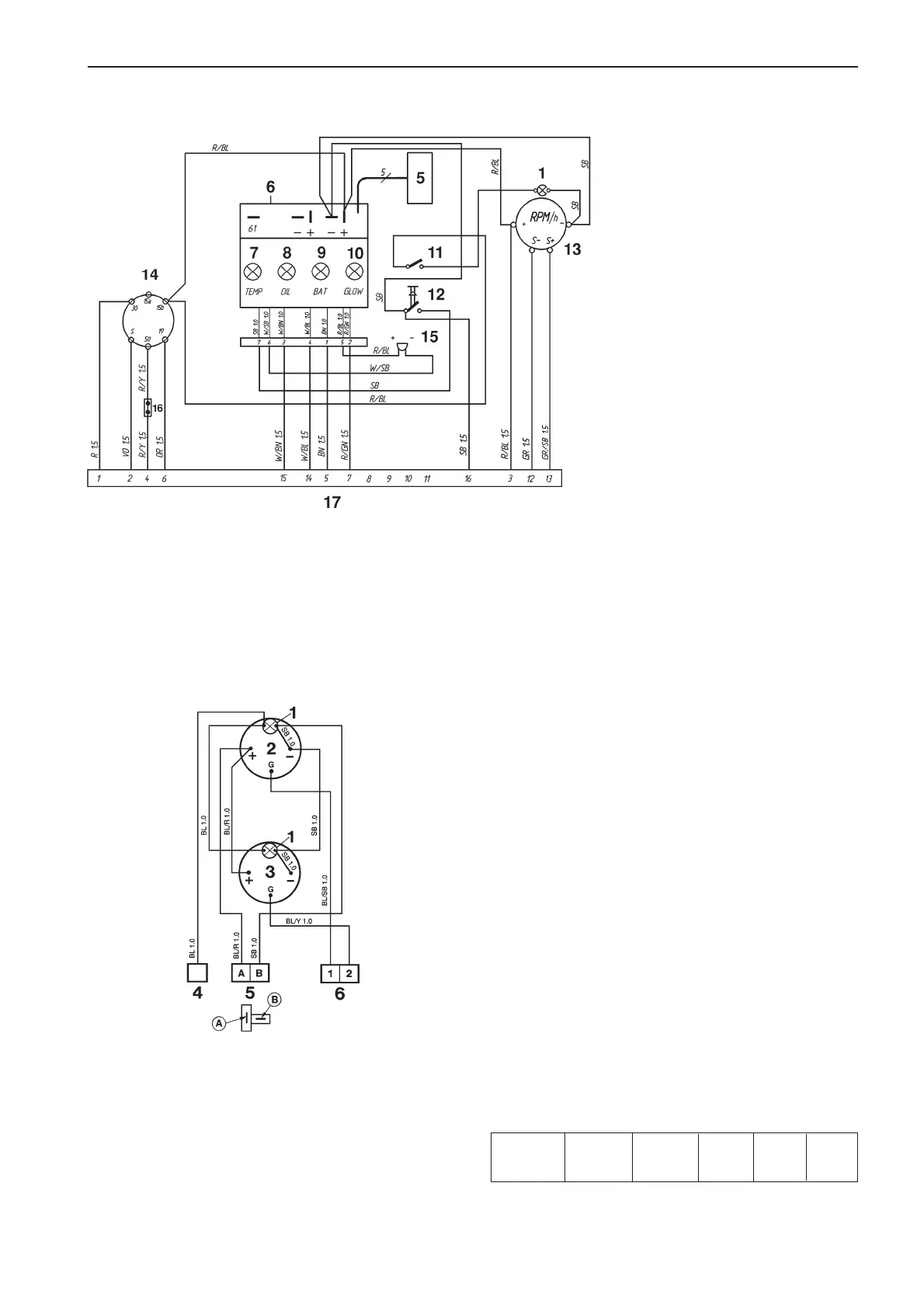

Instrument panel for alternative control position (Flying Bridge)
1. Instrument panel lighting
2. Oil pressure gauge, reverse gear
3. Turbo charging pressure gauge
4. Connection to instr. light. on main panel
5. Connection to printed circuit card on main panel
6. Connection to connector (18) on main panel
Auxiliary panel
Cable color
BL = Blue
R = Red
LBL = Light-blue
SB = Black
BN = Brown
LBN = Light-brown
GN = Green
VO = Violet
GR = Gray
W = White
OR = Orange
Y = Yellow
PU = Purple
Conversions mm
2
/AWG*
*American Wiring Gauge
mm
2
1.0 1.5 2.5 10 16
AWG 16 (17) 15 (16) 13 7 5
1. Instrument panel lighting
5. Connector for connecting
extra warning display
(accessory)
6. Control module (alarm)
7. Warning light, engine coolant
termp. (ECT)
8. Warning light, oil pressure
9. Warning light, charge
10. Control lamp (not used)
11. Instrument lighting switch
12. Alarm test/acknowledgement
switch
13. Tachometer with built-in
hours run meter
14. Key switch
15. Alarm
16. Connector for neutral position
switch, if fitted
17. 16-pin connection
