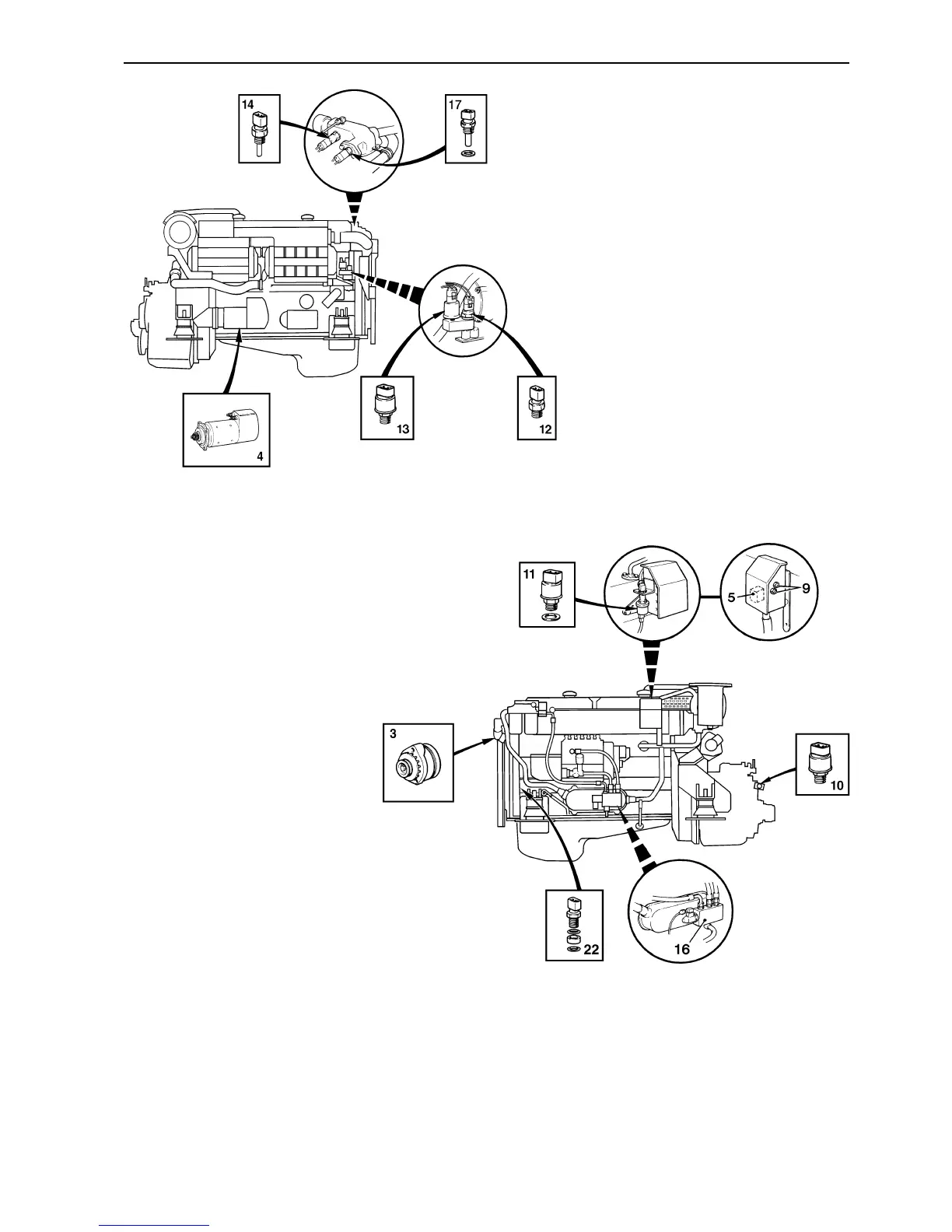

Maintenance: Electrical component diagrams
TAMD74A
3. Alternator
4. Starter motor
5. Starter relay
9. Circuit breakers
10. Oil pressure sensor, reverse gear
11. Turbo pressure sensor
12. Oil pressure monitor, engine
13. Oil pressure sensor, engine
14. Coolant temperature sensor
16. Fuel shut-off valve (solenoid valve)
17. Coolant temperature monitor
22. Engine speed sensor
