Wheelchair lift

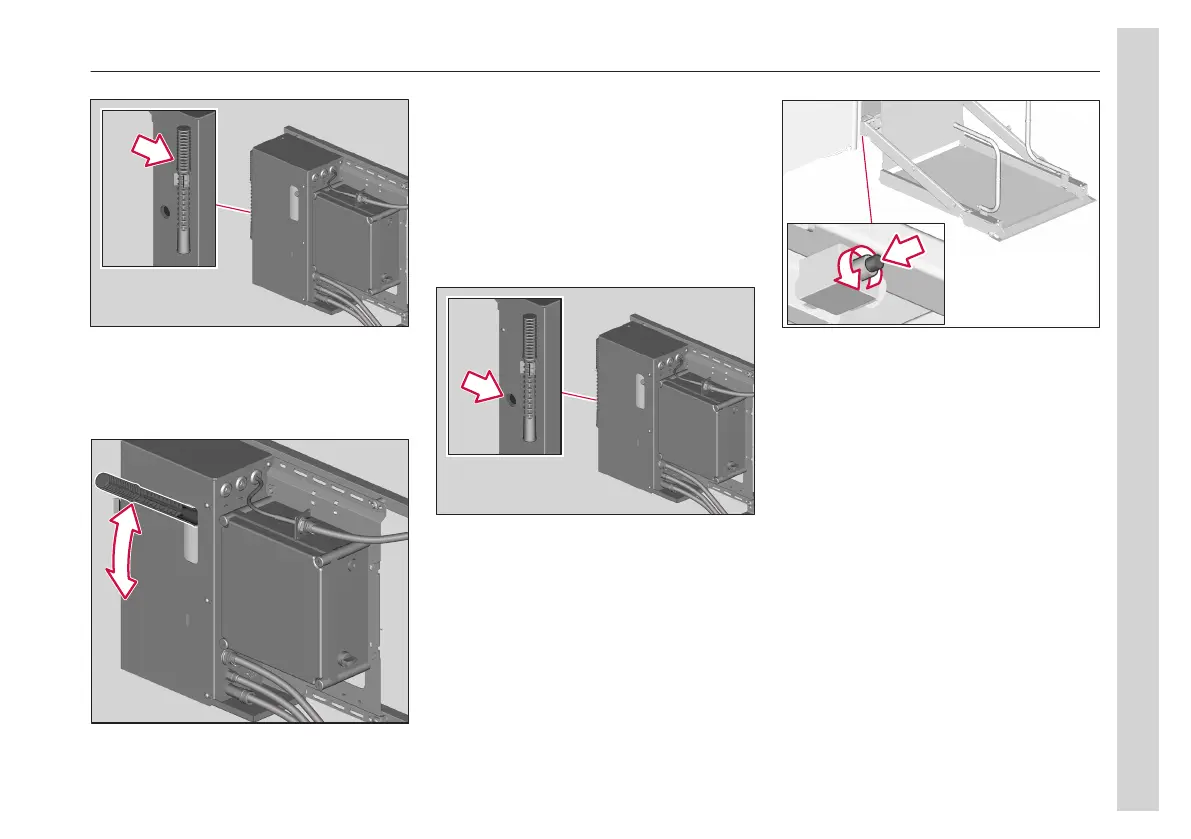

• Fit the lever in the handle of the hand
pump.
• Move the lever up and down to raise
the platform 15 cm.
Lower platform
• Depress the solenoid valve fitted on
the lift control housing at the side of
the luggage compartment to lower
the platform.
The platform will stop when the solenoid
valve is no longer depressed or when the
platform is in the lowest position.
Emergency safety flap
Remove the lock nut from the
emergency button to open the safety
flap, located in the lift frame.
• Turn the button anticlockwise to open
the emergency flap.
• Rotate the button in the clockwise
direction to close the emergency flap.
• Fasten the button with the nut.
Do not forget to lift the rails, see
page 73.
Raise platform
• Move the hand pump lever up and
down to raise the platform to the
highest position.
Stow platform
• Prior to stowing the platform,
disconnect the motor using the
switch on the electric box next to the
lift compartment.
05
Equipment
75
