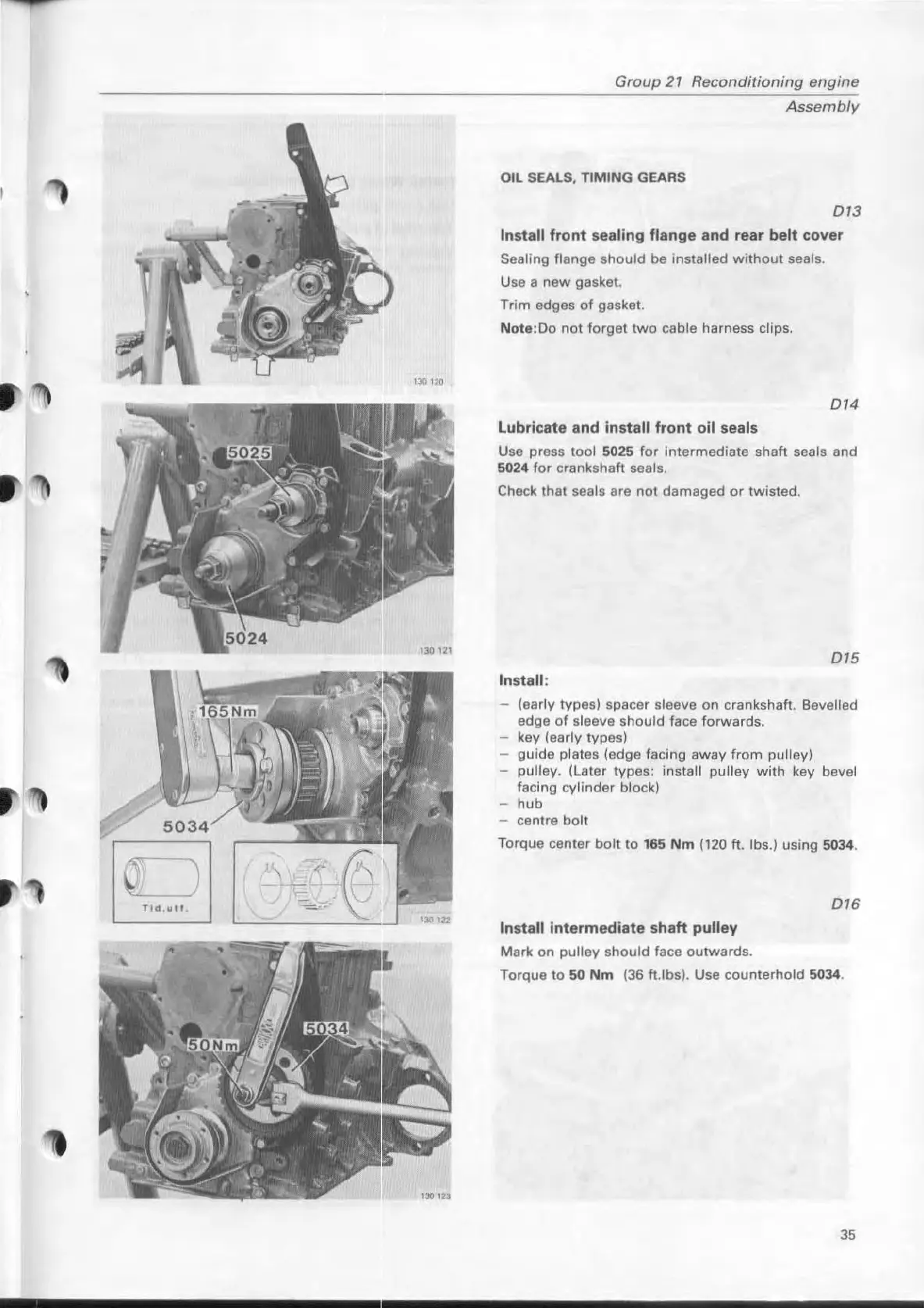

5034
~
\
- -
= .
Group
27
Reconditioning
engine
Assembly
Qll
SEAlS,
TIMING GEARS
013
Install
front
sealing
flange
and
rear
belt
cover
Sealing flange should be inSlalled
without
seais.
Use a
new
gasket.
Trim edges
of
gasket.
Note:Do not forget
two
cable hamess clips.
014
Lubricate and i
nstall
front
oil
seals
Use press tool 5025
for
intermediate shaft seals and
5024
for
crankshaft
sea
Is.
Check that seals are
not
damaged
or
twisted.
015
Install:
- (early types) spacer sleeve on crankshaft. Bevelied
edge
of
sleeve should face forwards.
key (early types)
guide plates (edge facing
away
from
pulley)
- pulley.
(later
types: install
pulley
with
key bevel
facing cylinder block)
- hub
- centre
bolt
Torque center
bolt
to
165
Nm
(120 ft. Ibs.) uSing 5034.
Install i
ntermediate
shaft
pulley
Mark on
pulley
should
face
outwards.
016
Torque
to
50
Nm
(36 ft.lbs). Use counterhold 5034.
35
