Volvo B 21 - Flywheel Installation (Manual Gearboxes); Driven and Pressure Plate Installation (Manual)

Group 21 Reconditioning engine
Assembly
5112
~ • o
H5
1
130 3M
38
025

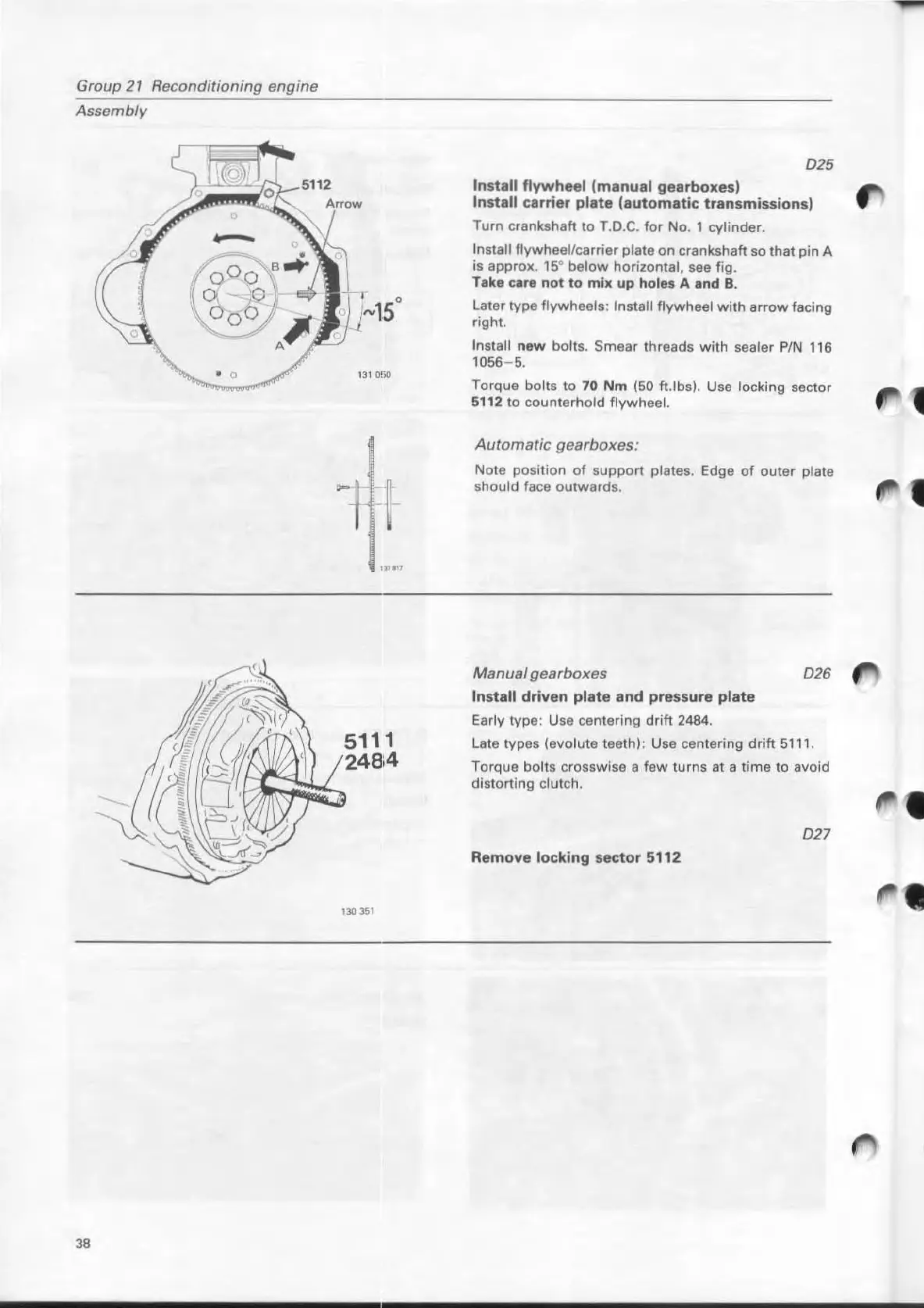

Install flywheel (manual gearboxesl
Install carrier plate (automatic transmissions)
Tum crankshaft to T.D.C. for No . 1 cylinder.
Install flywheel/carrier plate
on crankshaft so that pin A
is approx. lS " below horizontal. see fig.
Take care not to mix up holes A and B.
later type flywheels: Install flywheel with arrow faeing
right.
Install new bolts. Smear threads with sealer PIN 116
1056- 6.
Torque bolts to 70 Nm (50 fUbs). Use locking sector
5112
to eounterhold flywheel.
Automatic gearboxes:
Note position of support plates. Edge of outer plate
should
face outwards.
~anu8lgearboxes 026
Install driven plate and pressure plate
Early type: Use centering drift 2484.
late typas (evolute teeth): Use centering drift 5111.
Torque
balts crosswise a few tums at a time to avoid
distorting
dutch.
027
Remove locking sector 5112
