Controls
Friction brake

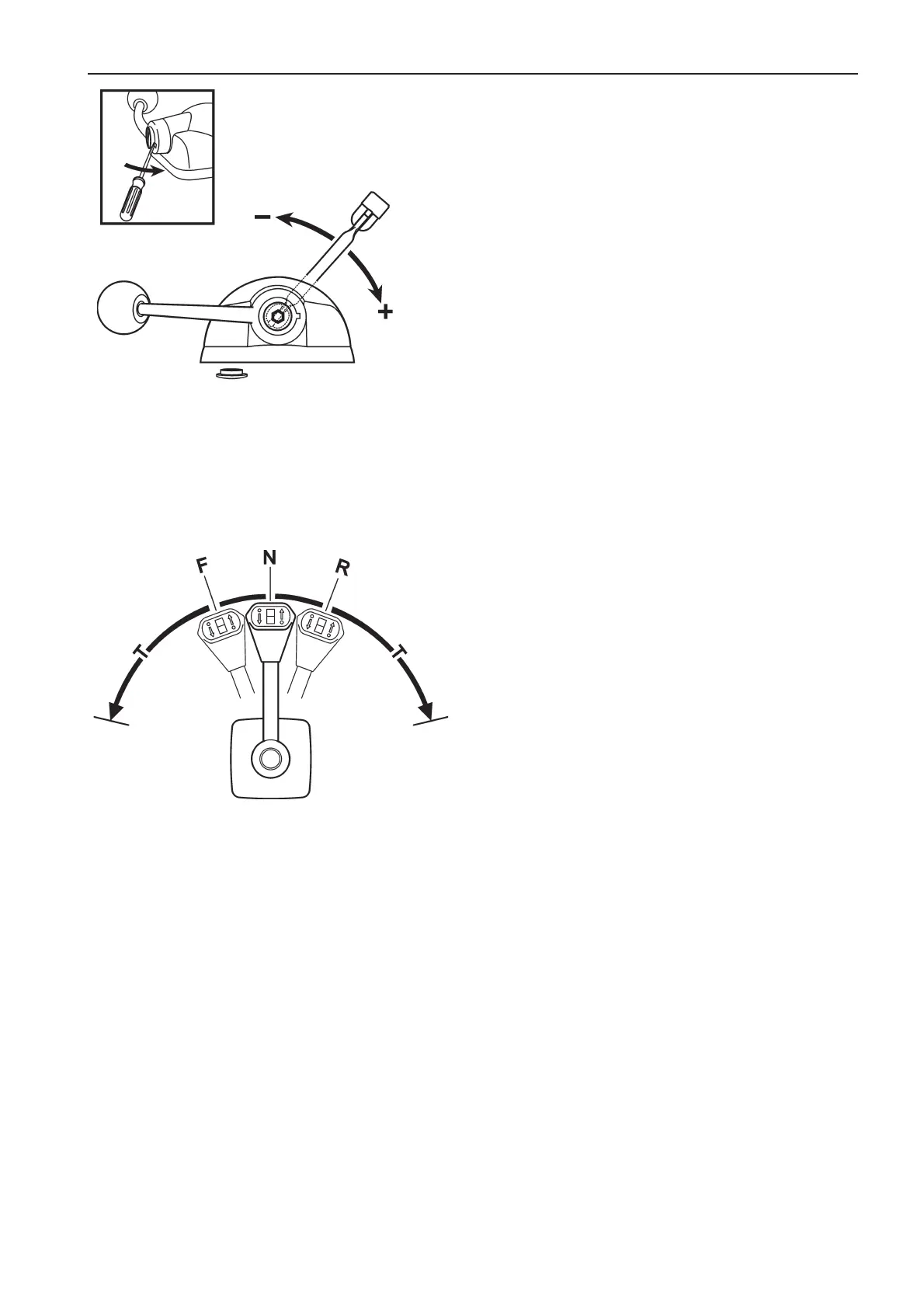

The control has a friction brake which can be adjusted as
necessary to provide lighter or heavier lever action.
Adjusting the friction brake:
1. Stop the engine.
2. Mover the control lever forwards so that the groove in
the hub of the control lever is accessible.
3. Position a screwdriver in the groove and remove the
plug.
4. Adjust the friction brake (8 mm wrench):
Clockwise = heavier lever action
Counter clockwise = lighter lever action.
5. Reinstall the plug.
Side mounted control lever. Electronic
Operation
Both the shift function and engine speed control are con-
trolled using the control lever.
N = Neutral position (stern drive is disengaged and the
engine runs at idle speed).
F = Stern drive engaged for movement ahead.
R = Stern drive engaged for movement astern.
T = Adjustment of engine speed.
NOTE! The engine can only be started if the Control le-
ver is in the neutral position.
