9 Offset boom or X1 selection (optional
equipment.
10 Dozer blade control lever (can be switched to
extend tracks, optional, not for EC15E)
11 Throttle lever
12 Button to change between high travel speed
and low travel speed (optional, not for
EC15E)

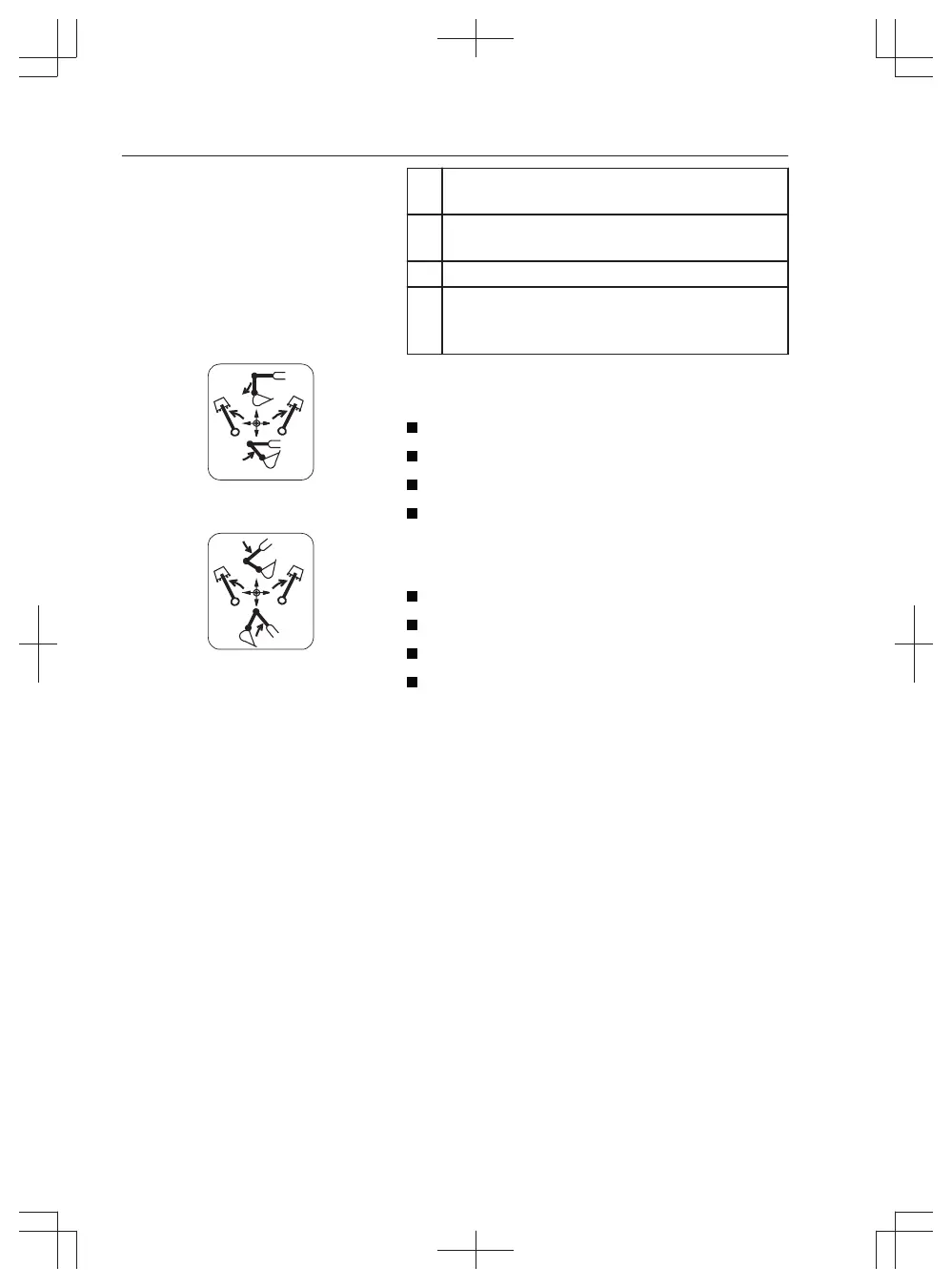

1. Left control lever for attachments (ISO
control pattern)
Lever forward: Extending the dipper arm.
Lever backward: Retracting the dipper arm.
Lever to the right: Slewing movement to the right.
Lever to the left: Slewing movement to the left.
Left control lever for attachments (STD
control pattern, North America only)
Lever forward: Boom down.
Lever backward: Boom up.
Lever to the right: Slewing movement to the right.
Lever to the left: Slewing movement to the left.
NOTE!
Market dependent optional equipment. North
America only. See control pattern selector switch in
chapter Instrument panels, right, on page
38
.
