NOTE!
To avoid tilting, the boom must be in direction
towards the ramp.
NOTE!
Never operate any lever other than the travel levers
(pedals) while the machine is on the loading ramp.
2 Align the machine’s tracks to the ramp.
3 Park the machine on the truck or trailer.
4 Place the attachment and the dozer blade on the
wooden blocks as shown on the illustration.
5 Stop the machine and remove the ignition key.
6 Disconnect the battery (under left hood, remove
battery quick (dis-) connector).
7 Lock the cab door and all lockable covers.
8 Secure both tracks with wheel chocks.

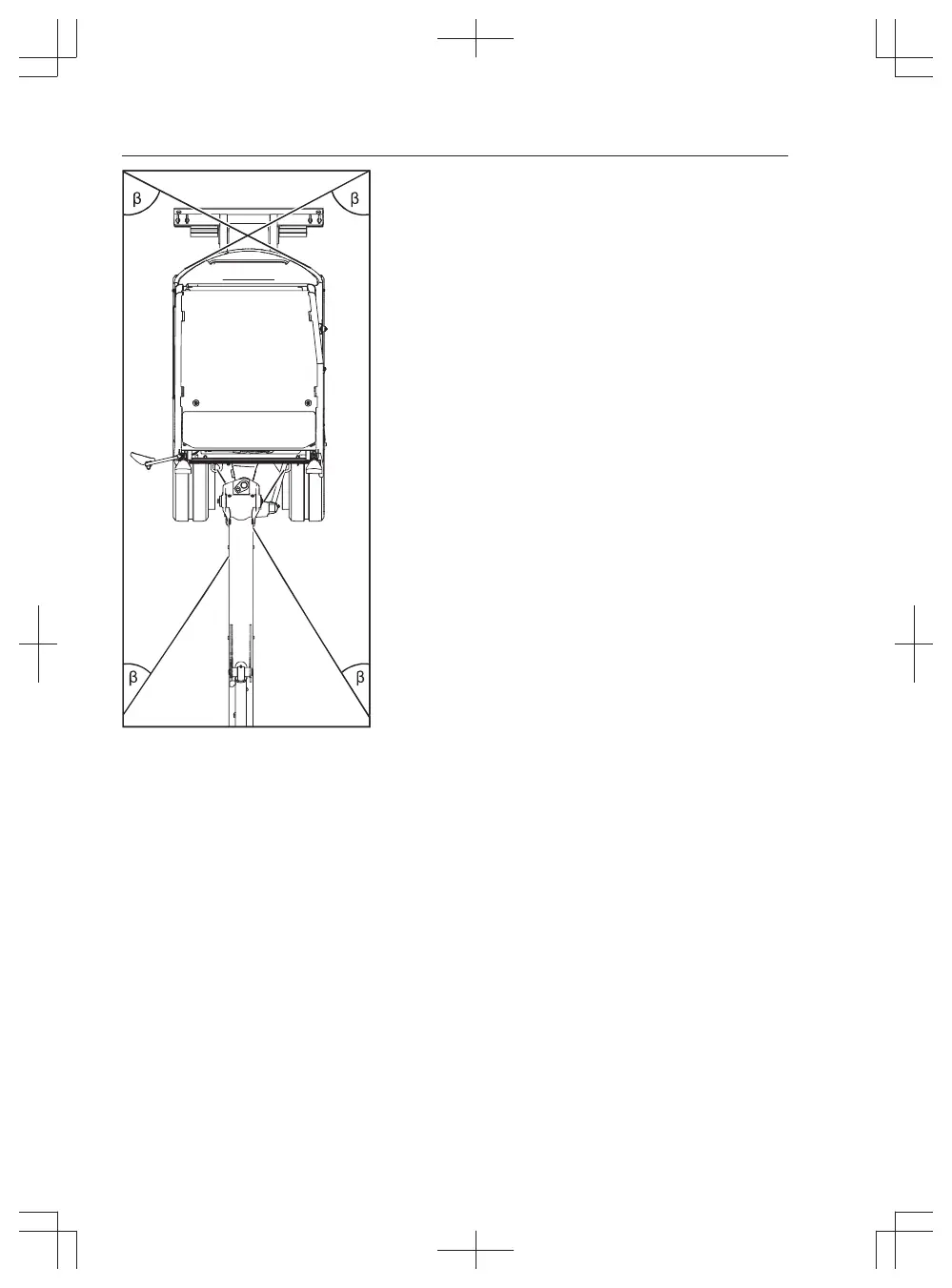

9 Tie the machine with chains and belts according
the illustrations and the tie down procedure (see
following instructions) to the loading platform of
the truck/trailer. Use the indicated angles in the
tables below and tie down forces indicated for
truck or trailer!
