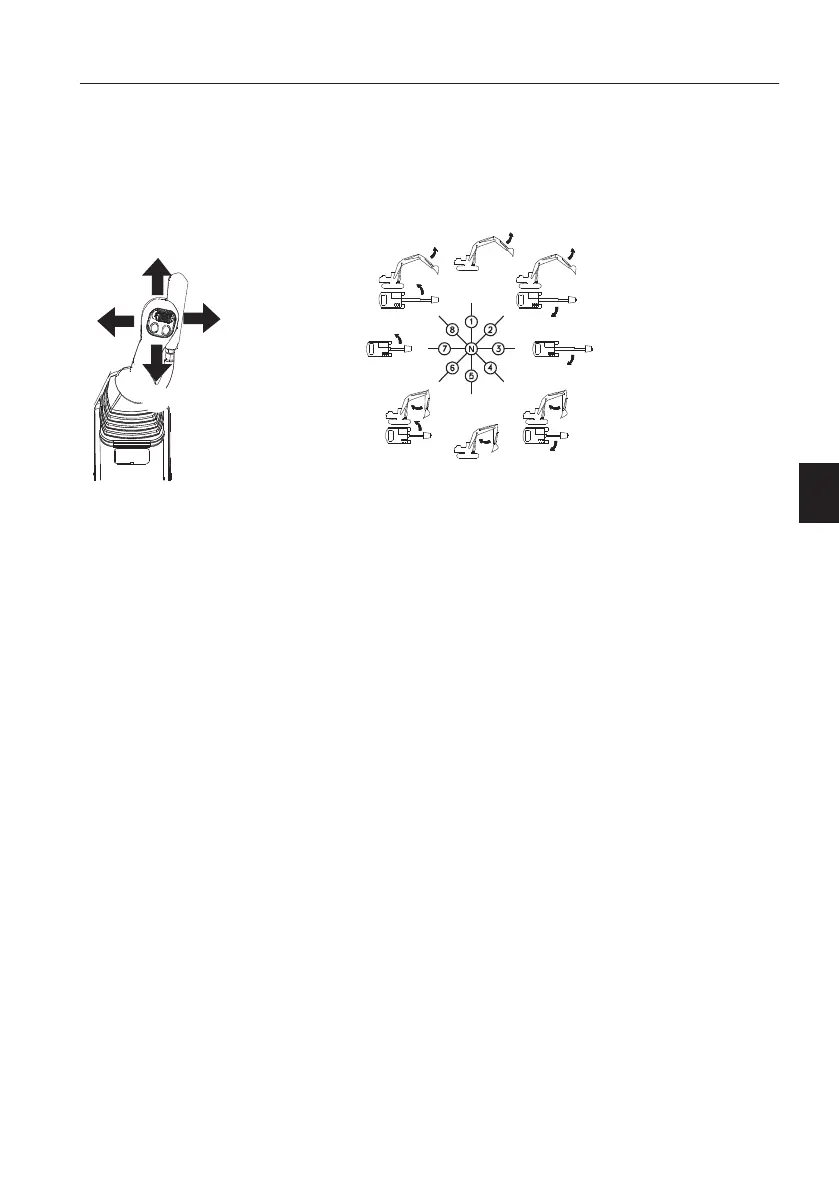

1 Left control lever
The control levers of this machine is set from factory
to operate in ISO/SAE standard operating pattern
for optimum machine performance.
ISO/SAE control pattern
V1158496
1
3
4
2
V1067092
1 Dipper arm out N Neutral (superstructure and dipper arm in
neutral position)
2 Dipper arm in 1 Dipper arm out
3 Left swing 2 Dipper arm out and swing superstructure right
4 Right swing 3 Swing superstructure right
4 Dipper arm in and swing superstructure right
5 Dipper arm in
6 Dipper arm in and swing superstructure left
7 Swing superstructure left
8 Dipper arm out and swing superstructure left
Other controls
Controls 101
