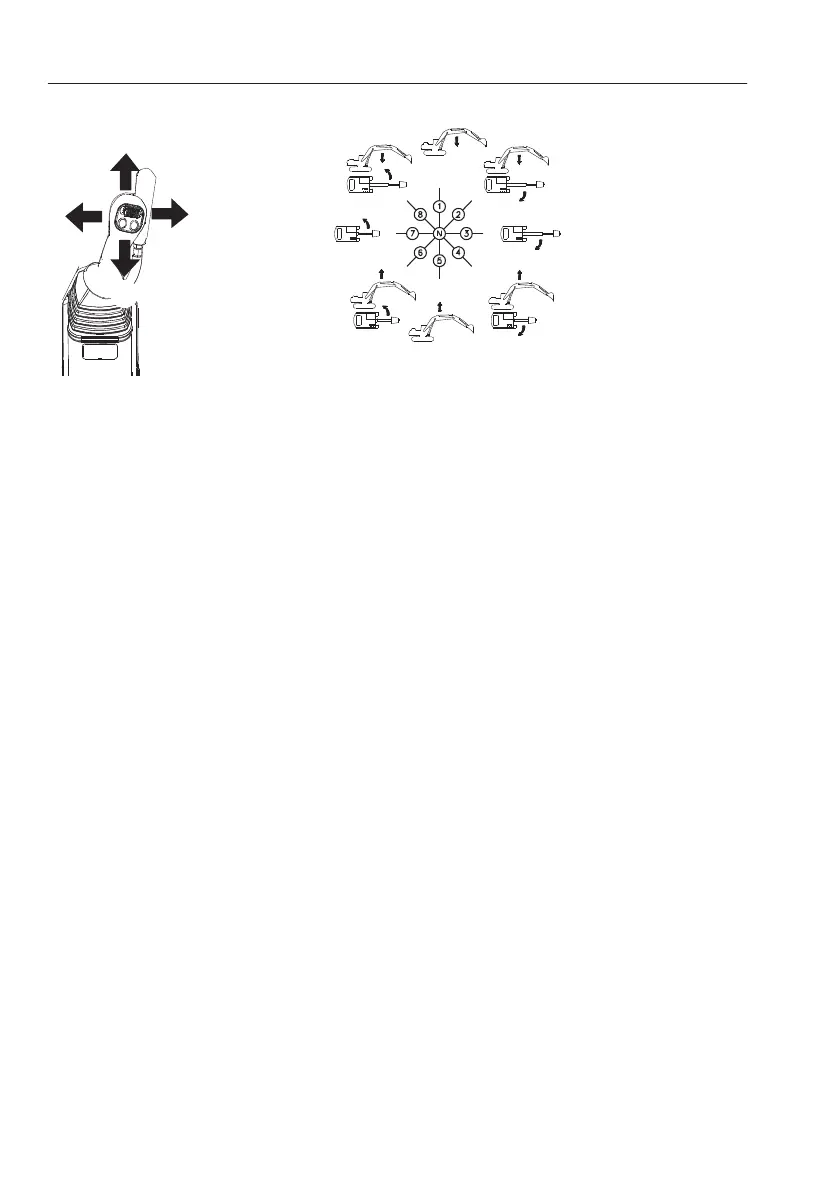

Backhoe loader control pattern (optional)
V1158496
1
3
4
2
V1077717
1 Boom lower N Neutral (boom and superstructure in neutral
position)
2 Boom raise 1 Lower boom
3 Left swing 2 Lower boom and swing superstructure right
4 Right swing 3 Swing superstructure right
4 Raise boom and swing superstructure right
5 Raise boom
6 Raise boom and swing superstructure left
7 Swing superstructure left
8 Lower boom and swing superstructure left
