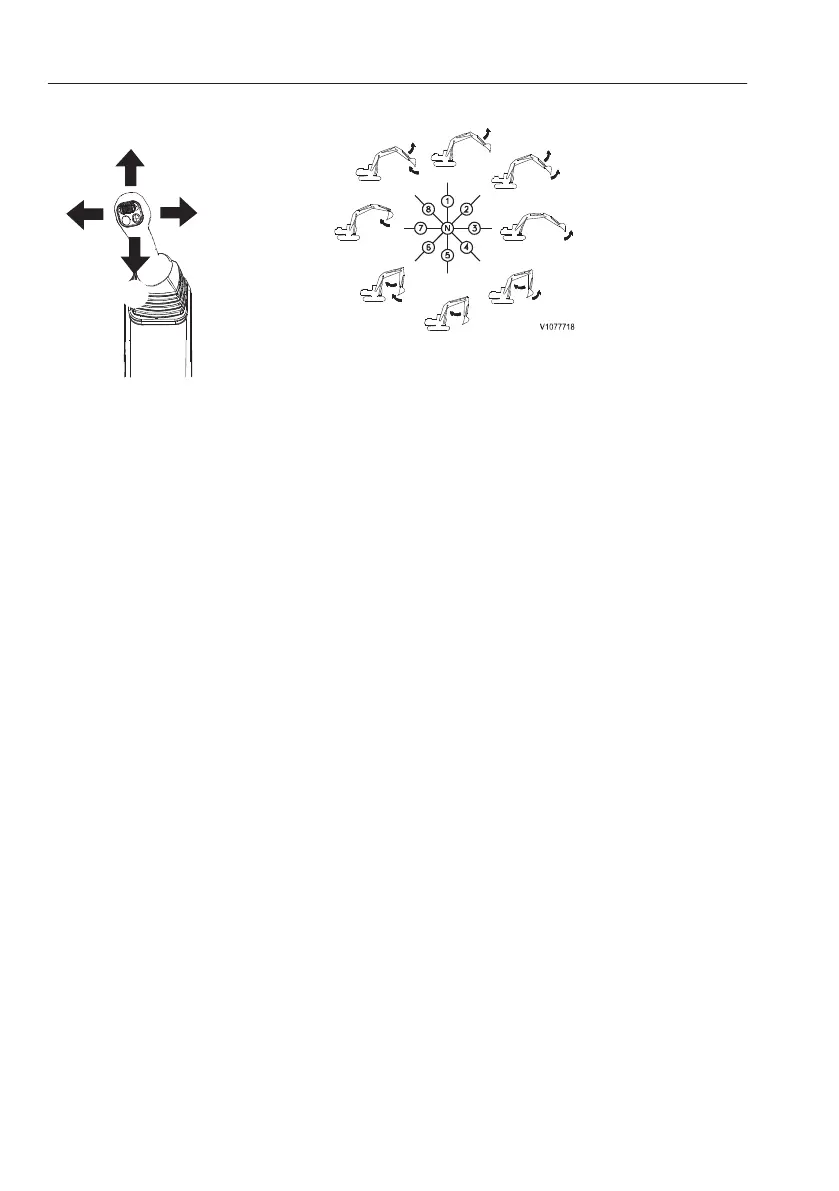

Backhoe loader control pattern (optional)
V1158497
1
3
2
2
4
1 Bucket in N Neutral (bucket and dipper arm in neutral
position)
2 Bucket out 1 Dipper arm out
3 Dipper arm out 2 Dipper arm out and bucket out
4 Dipper arm in 3 Bucket out
4 Dipper arm in and bucket out
5 Dipper arm in
6 Dipper arm in and bucket in
7 Bucket in
8 Dipper arm out and bucket in
