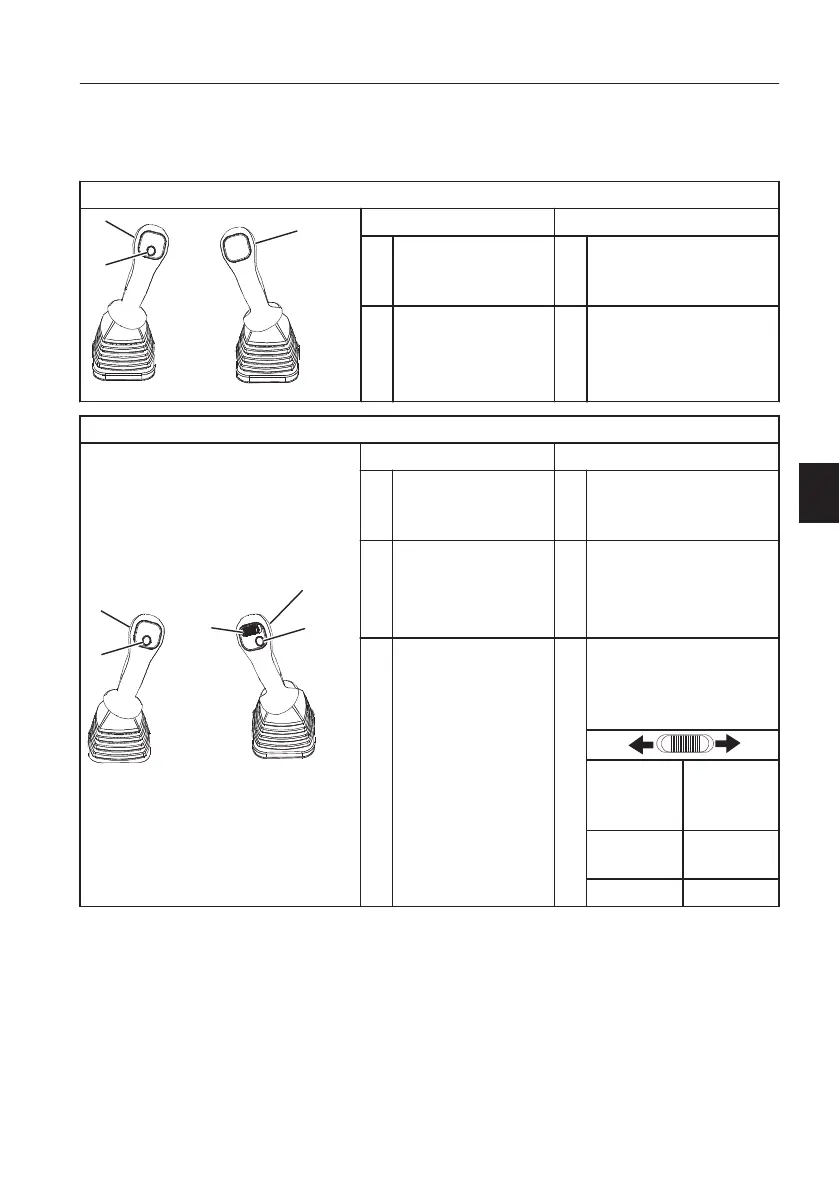

Control lever types and settings
The machine is equipped with one of the below
described control lever settings.
Setting A
V1158498
1
2
3
Left control lever Right control lever
1 Horn button 3 Operating switch for
hydraulic breaker
(hammer)
2 Unassigned
Setting B
V1158499
1
2
4
5
3
Left control lever Right control lever
1 Horn button 3 Operating switch for
hydraulic breaker
(hammer)
2 Unassigned 4 Function selector
switch for boom-swing
or X1
(a)
or open and
closing attachments
(b)
5 Operating switch for
boom-swing or X1 or
open and closing
attachments
Boom-
swing to
left
Boom-
swing to
right
Attachmen
t opens
Attachmen
t closes
Hammer
a)X1 can be one of hydraulic breaker (hammer) or Shear. Select work tool at I-ECU —> MENU —>
Setup —> X1.
b)Clamshell buckets, thumb and woodgrab (optional equipment)
