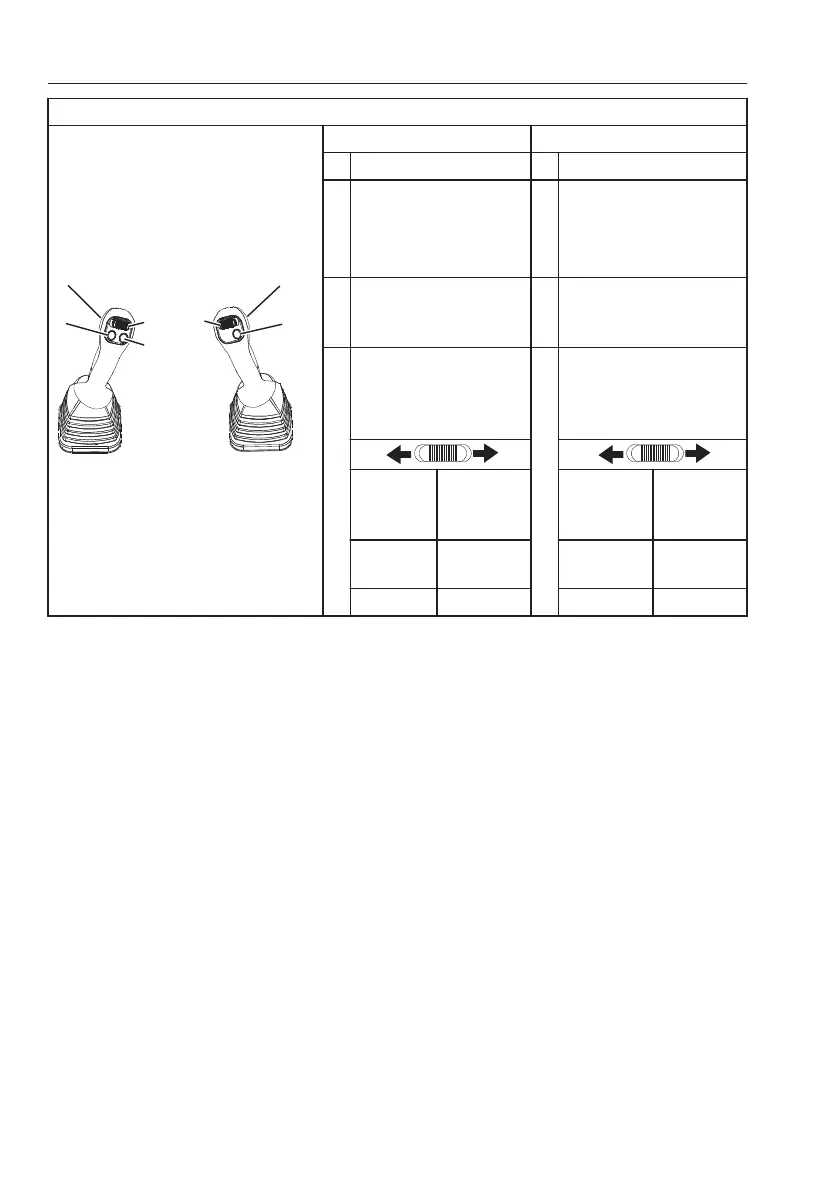

Setting C (with standard dozer blade)
Left control lever Right control lever
1 Horn button
2 Function selector
switch
for dozer blade
or X3
(a)
5 Function selector
switch for boom-swing
or X1
(b)
or open and
closing attachments
(c)
3 Unassigned 6 Operating switch for
hydraulic breaker
(hammer)
4 Operating switch for
dozer blade or X3
7 Operating switch for
boom-swing or X1 or
open and closing
attachments
Dozer
down
Dozer up Boom-
swing to
left
Boom-
swing to
right
Rotate to
left
Rotate to
right
Attachme
nt opens
Attachme
nt closes
Hammer
a)Rotator (optional equipment). Select work tool at I-ECU —> MENU —> Setup —> X3.
b)X1 can be one of hydraulic breaker (hammer) or Shear. Select work tool at I-ECU —> MENU —>
Setup —> X1.
c)Clamshell buckets, thumb and woodgrab (optional equipment)
