Attaching and disconnecting
attachments
Bucket, changing
Bucket, removal
NOTE!
Metal splinter may loosen from the pin when
knocking it with a hammer. Always wear protective
goggles, hard hat and protective gloves when
removing attachment pins.

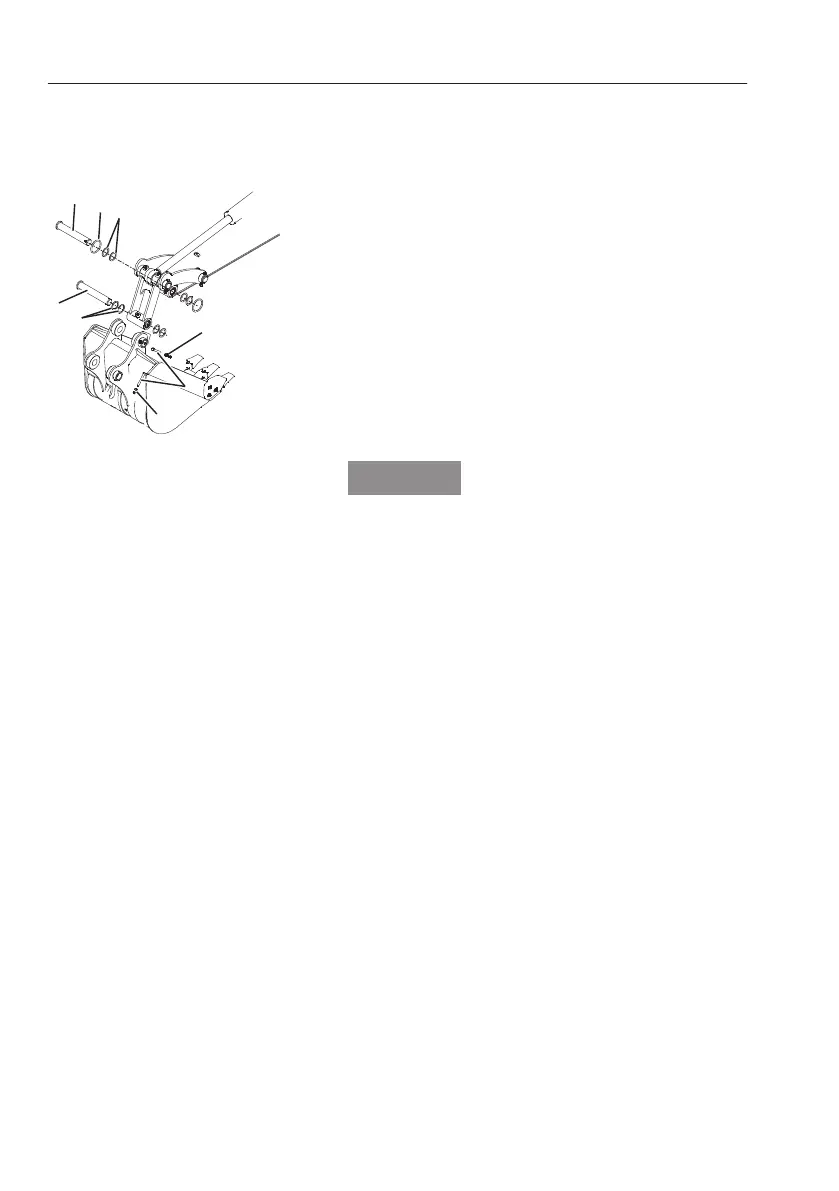

1 Lower the bucket lightly on the ground.
2 Remove the lock bolt (A) and nuts (B) of each
pins (C and D).
3 Remove pins (C and D), shims (F), and O-
rings (E), then remove the bucket.
NOTICE
Block the removed bucket to stabilise it. Keep the
pins clean and do not damage the O-ring.
