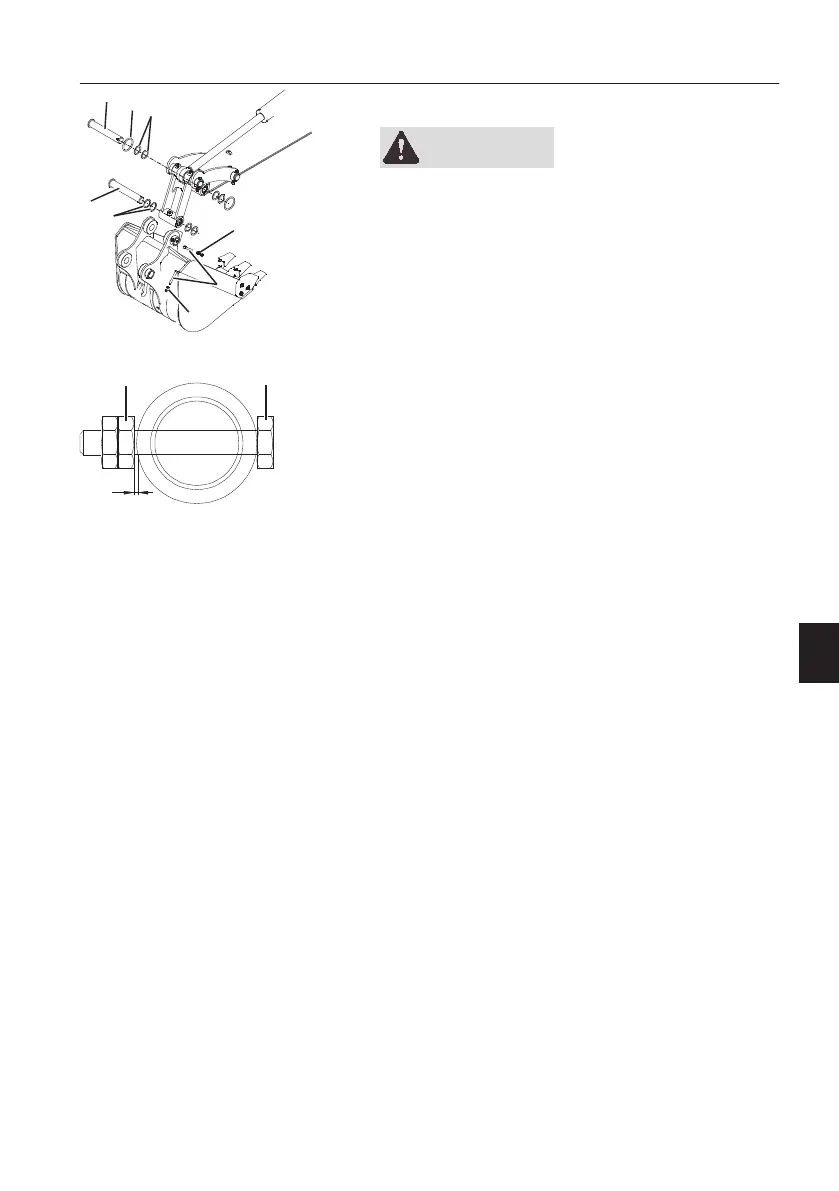

Bucket, installation
CAUTION
Risk of cutting and crushing.
Loose parts could cause crushing and cutting injury.
Never use your fingers for checking alignment
between loose parts. Always use a tool.
1 Align the dipper arm and links to the bucket.
2 Put O-rings (E) with shims (F) at the holes for
the dipper arm and bucket.
3 Apply grease to the holes.
4 Insert pins (C).
5 Put shims (F) at the holes for the link and
bucket.
6 Insert pins (D).
7 Install lock bolt (A) and nuts (B) of each pins.
NOTE!
Make sure that there is a clearance of at least 2 mm
(0.08 in) between nut and lock bolt. Lubricate the
lock bolt.
Operating techniques
Attachments
193
