VORON 1.8 - Page 13

13
WWW.VORONDESIGN.COM
ADJUST TO 90MM DISTANCE

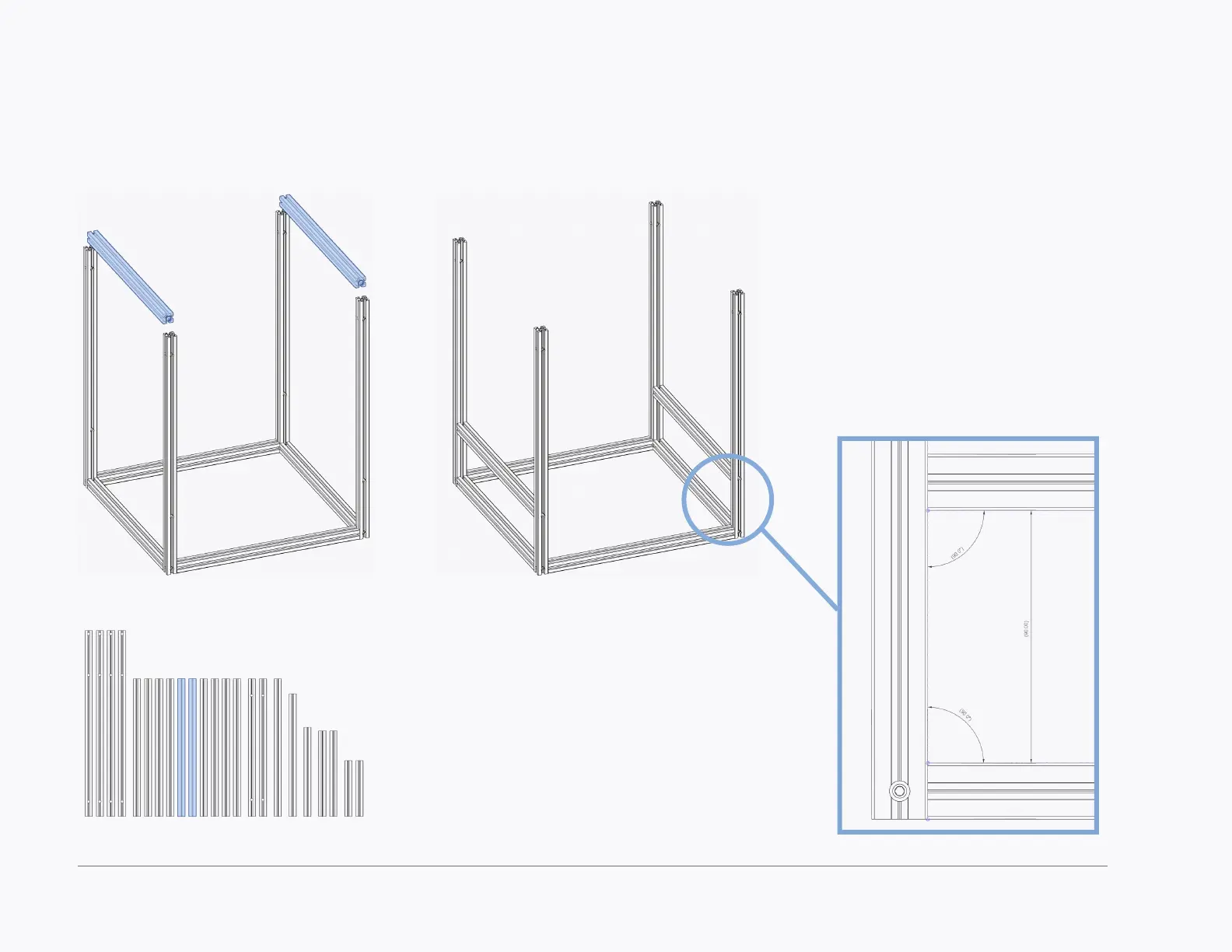

The extrusions that will later hold the Y-Rails are
spaced 90mm from the top extrusions (110mm
from the work surface).
Make sure that they sit ush with the vertical
extrusions and aren’t twisted/rotated. A small
machinist square will help with this task.
Y EXTRUSIONS
