BOTTOM EXTRUSIONS
FINDING THE RIGHT POSITION

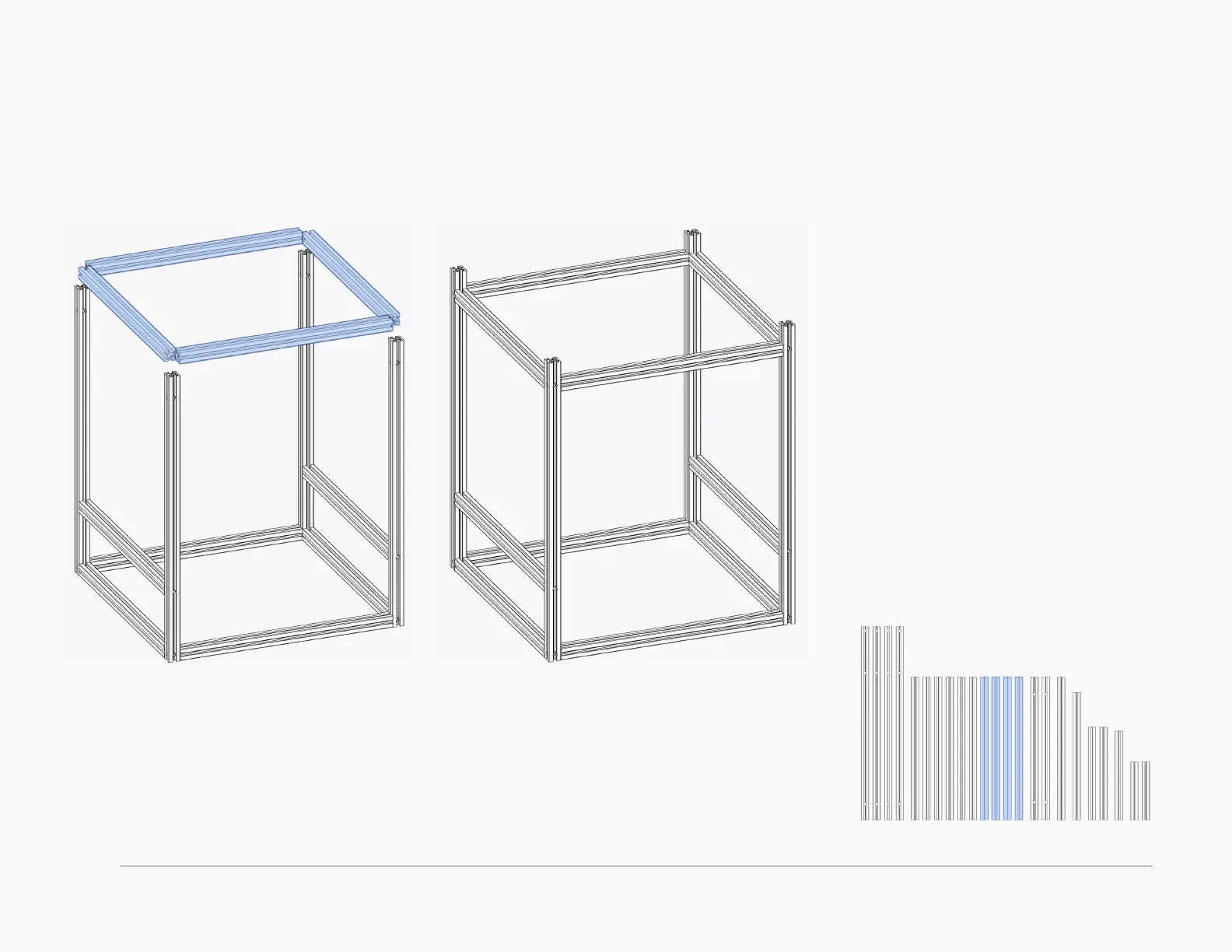

The bottom extrusions are spaced 320mm from
the Y extrusions.
Use the linear rods of the Z drive as a guide. Make
sure that you are able to slide them in from the
side.
Make sure that the extrusions sit at an 90° angle
and are free of any rotation/twist. The outsides of
the extrusions should be ush.
The position of the front/back facing extrusion is
not critical.
