VORON 1.8 - Z Stage and Motor Mounting

48
WWW.VORONDESIGN.COM
FLIP PRINTER BACKWARDS
Flip the printer on it’s back if
you’re having trouble installing
the Z stage installed
Z AXIS

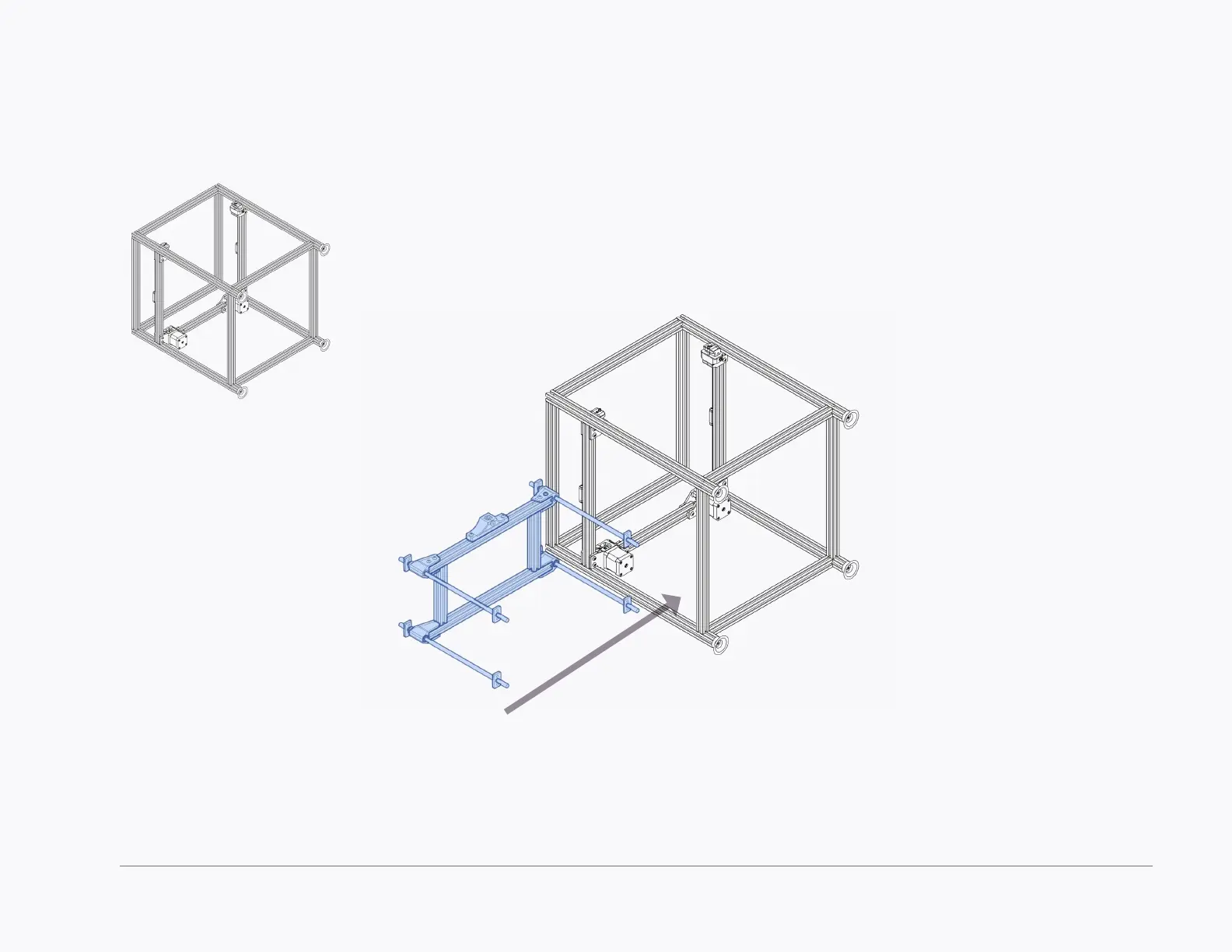

INSERT FROM THE SIDE
Insert the Z stage at an angle
to position all rods close to
their nal place.
If required loosen the bottom
extrusion.
Do not loosen the middle or
top extrusions.
