78
WWW.VORONDESIGN.COM

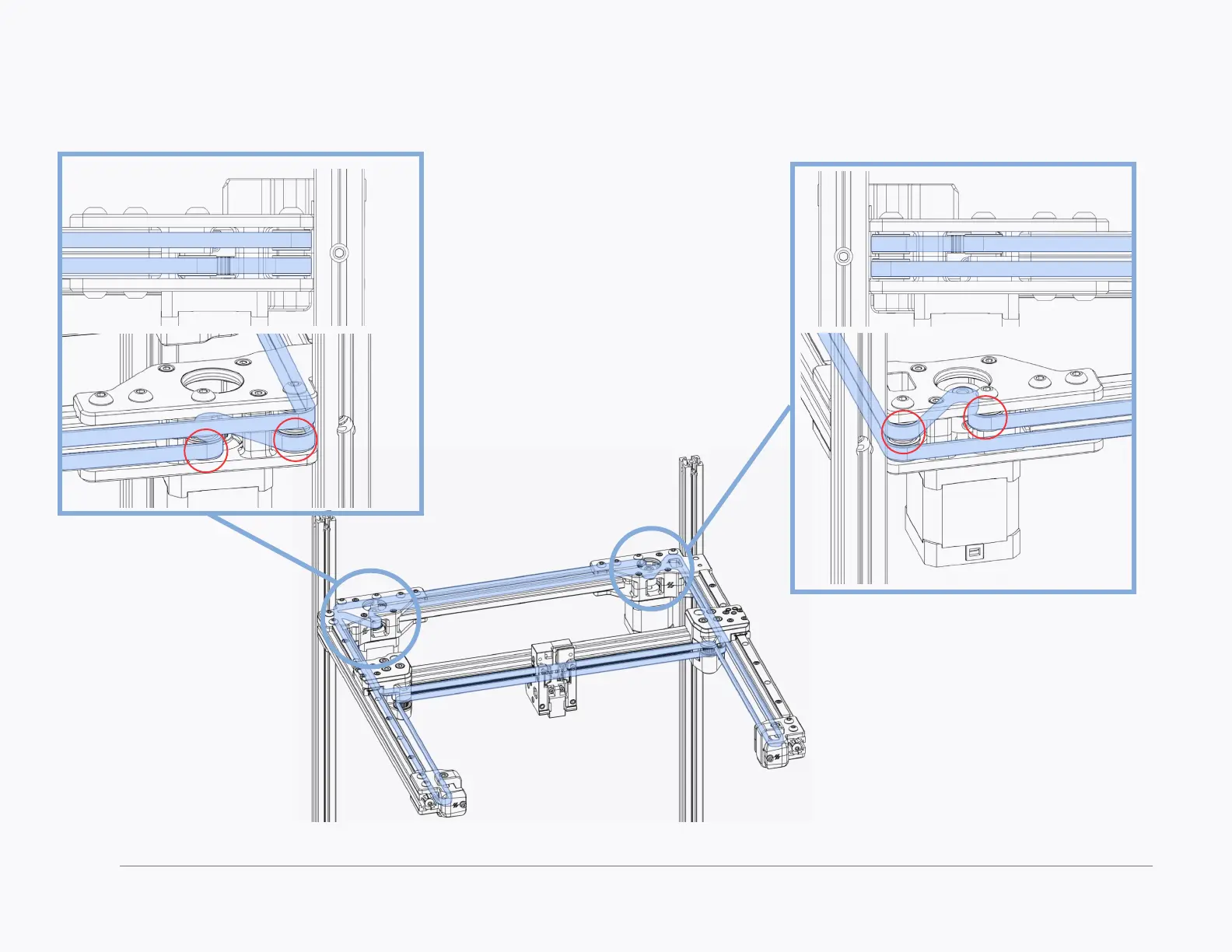

MIND THE BELT PATH
Make sure that the belts are sitting on the bearing stacks.
This may seem obvious but is easy to miss.
BELT ROUTING
