X AXIS ALIGNMENT

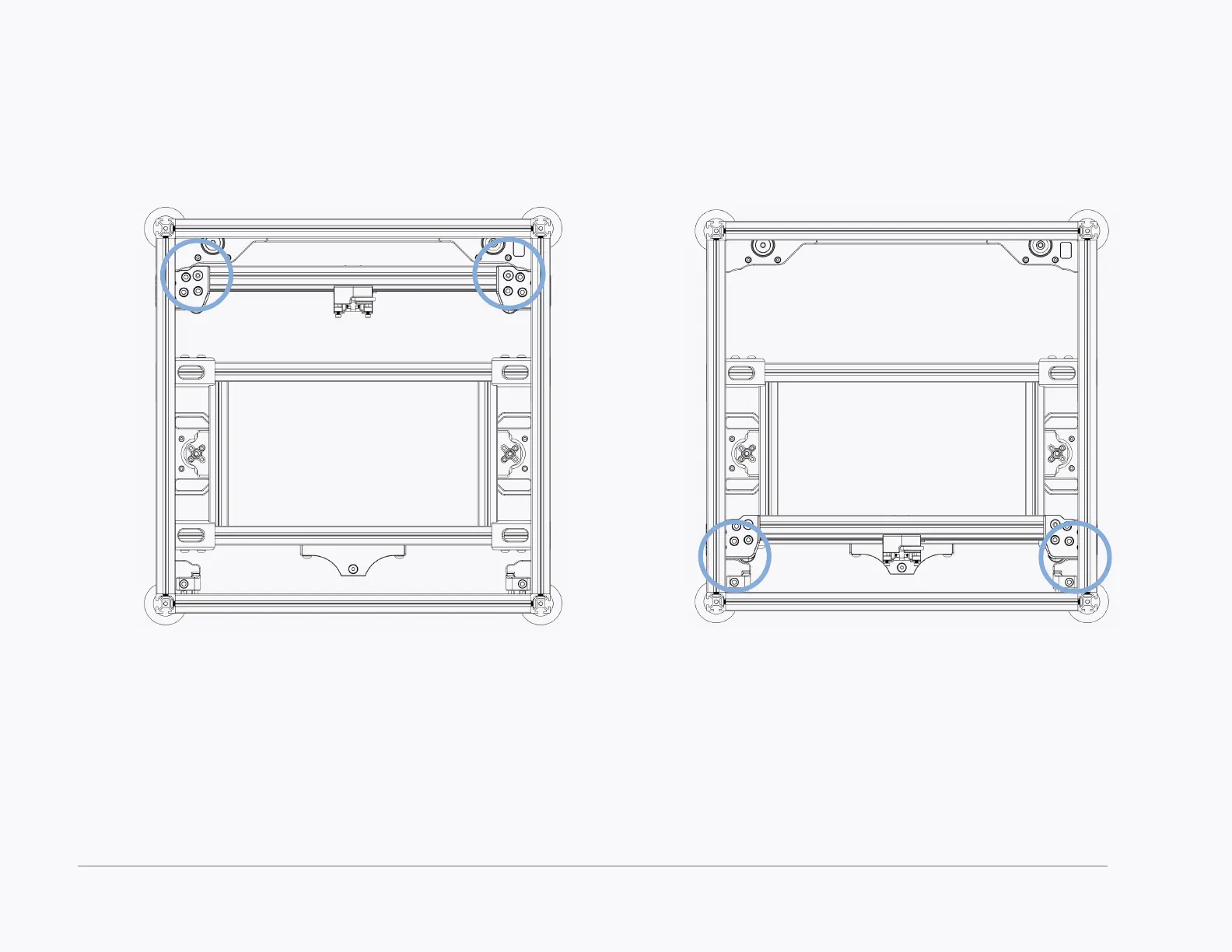

MOVE X AXIS BACK
Loosen the X Beam screws.
Move the axis all the way back. Both XY Joints
must touch the motor mounts.
MOVE X AXIS FORWARD
Move the axis all the way forward until both XY
Joints touch the idlers.
Tighten the screws on the xy joints.
