VORON 2.4 - Page 10

08
WWW.VORONDESIGN.COM
GT2 16 Tooth Pulley
NEMA17 Stepper Motor
16 TOOTH PULLEYS
The Z drive motors are the only
place in the printer that use 16 tooth
pulleys!
Remove them from your work surface
after you nish this chapter.

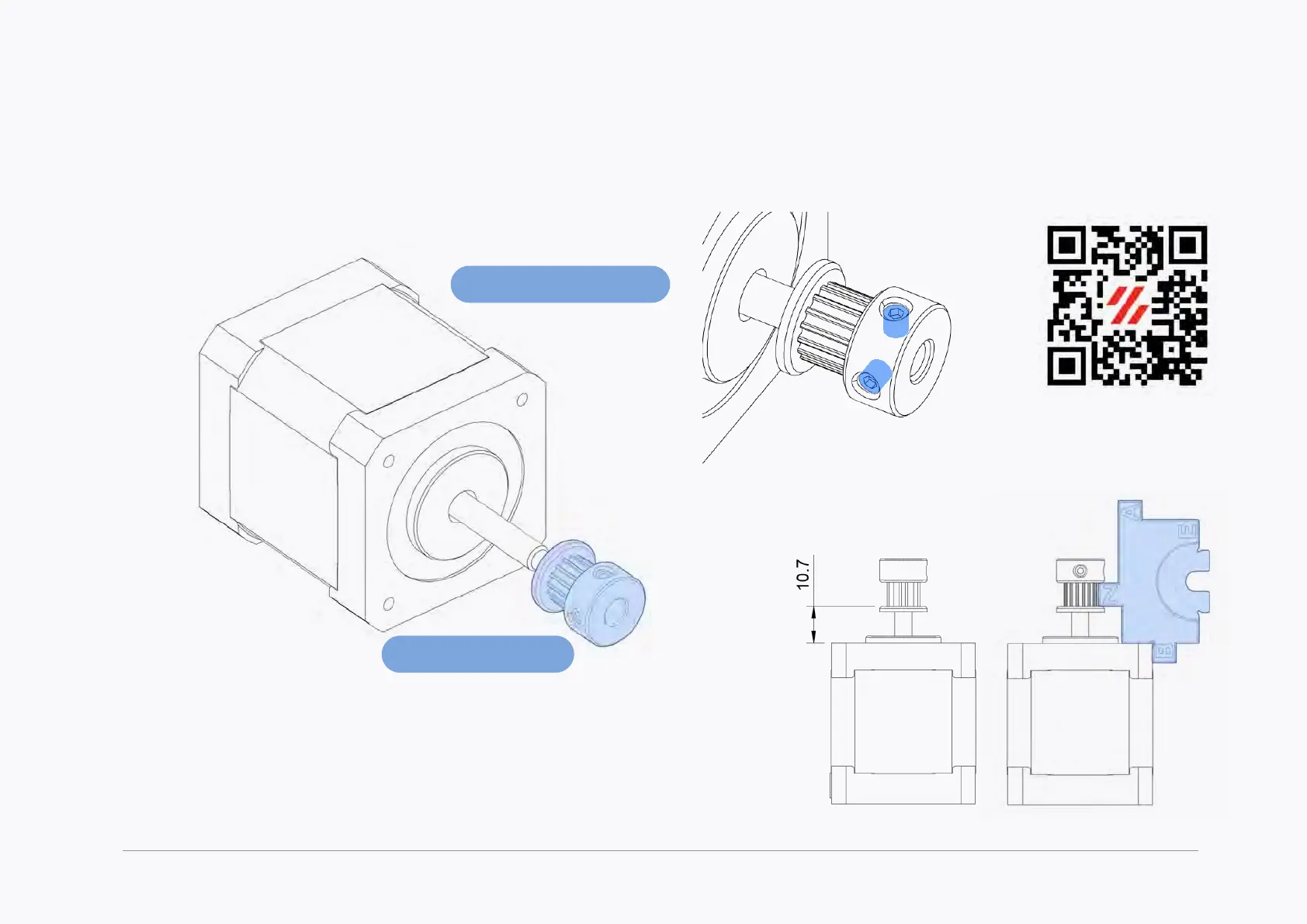

PULLEY POSITION
Depending on your motors,
you may nd that the pulley
sits better in the opposite
orientation. The important
thing is the placement of the
actual teeth.
Z DRIVE
APPLY THREAD LOCKER
Make sure to use thread locker on the
set screws.
