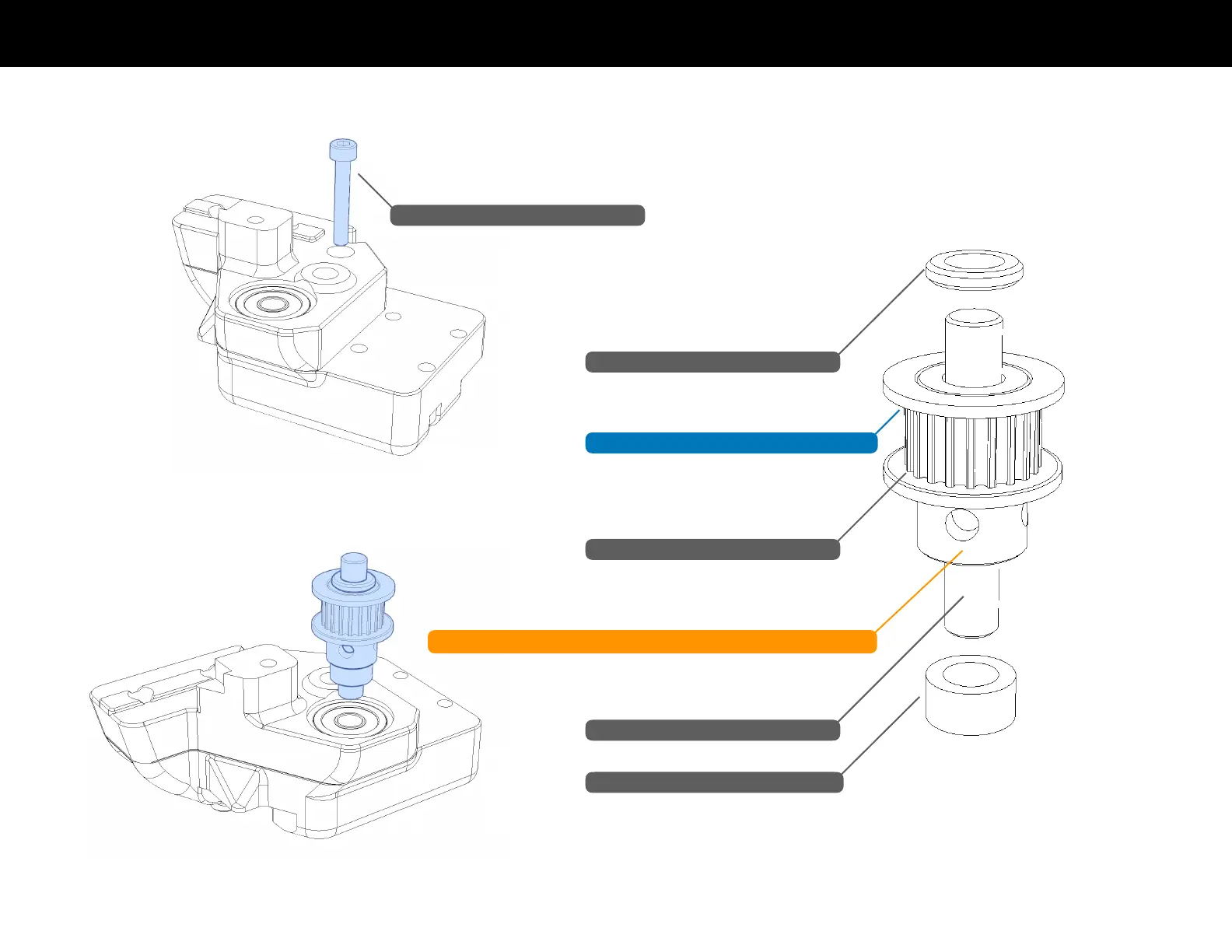

X/Y Joints - Right Joint
GT2 20T Pulley (6mm) w/out Hub
M3x20 SHCS
5x30mm Shaft
See Appendix A For Pulley Modification
Printed Spacer 1.6mm Thick
Printed Spacer 4.2mm Thick (Round ID)
Apply Shaft Retaining Compound, Remove Set Screw After Cured
