VORON ERCF v2 - Page 101

WWW.VORONDESIGN.COM
CAD version: ERCF V2
101101
SELECTOR
M3x20 SHCS
Belt_Tensioner †

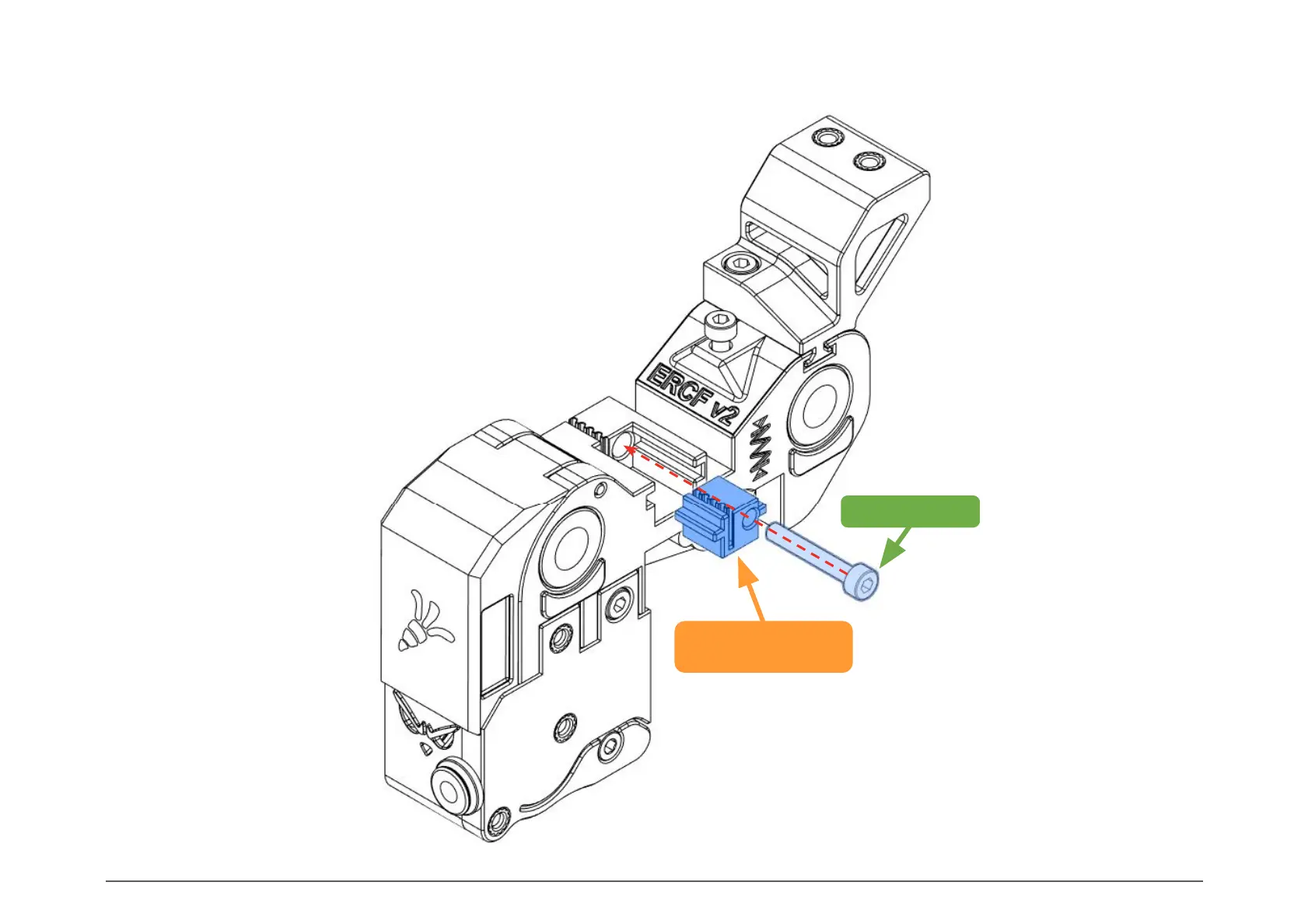

TENSIONER INSTALLATION
Insert the Belt_Tensioner into
the side of the Selector and
fasten it with a M3x20 screw.
We don’t need to tighten it all
the way yet.
DOOR AND BELT TENSIONER
