CAD version: ERCF V2
108108
LINEAR AXIS
D
1x Linear_Axis_Idler_Block.stl
1x GT2 20T toothed idler
1x M5x16mm BHCS
1x M5 Nylock nuts
A
B
C
LINEAR AXIS IDLER SUB-BOM
C
D
B

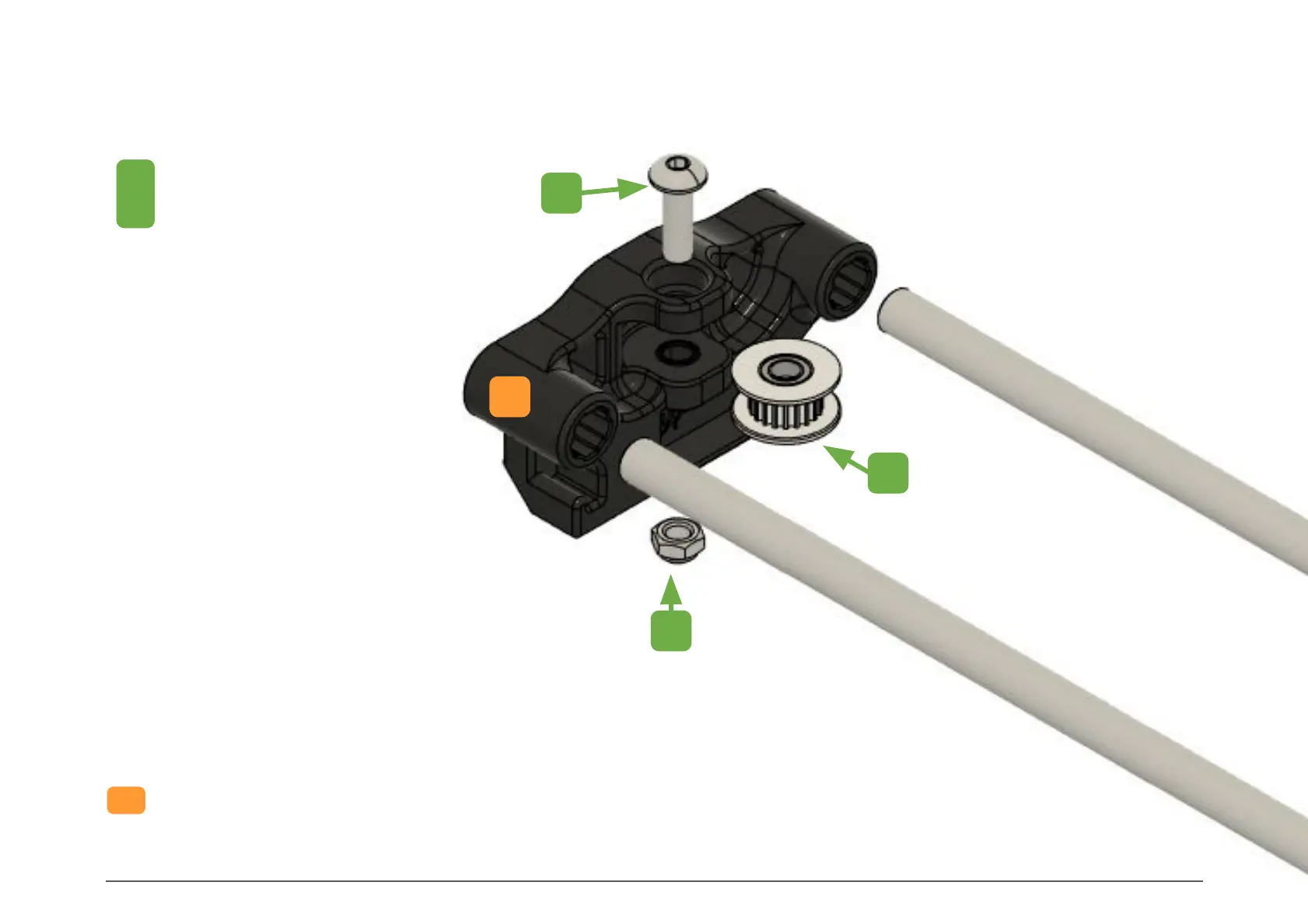

LINEAR AXIS IDLER EXPLODED VIEW
A
