CAD version: ERCF V2
110110
LINEAR AXIS
M3x12 SHCS
IDLER SIDE

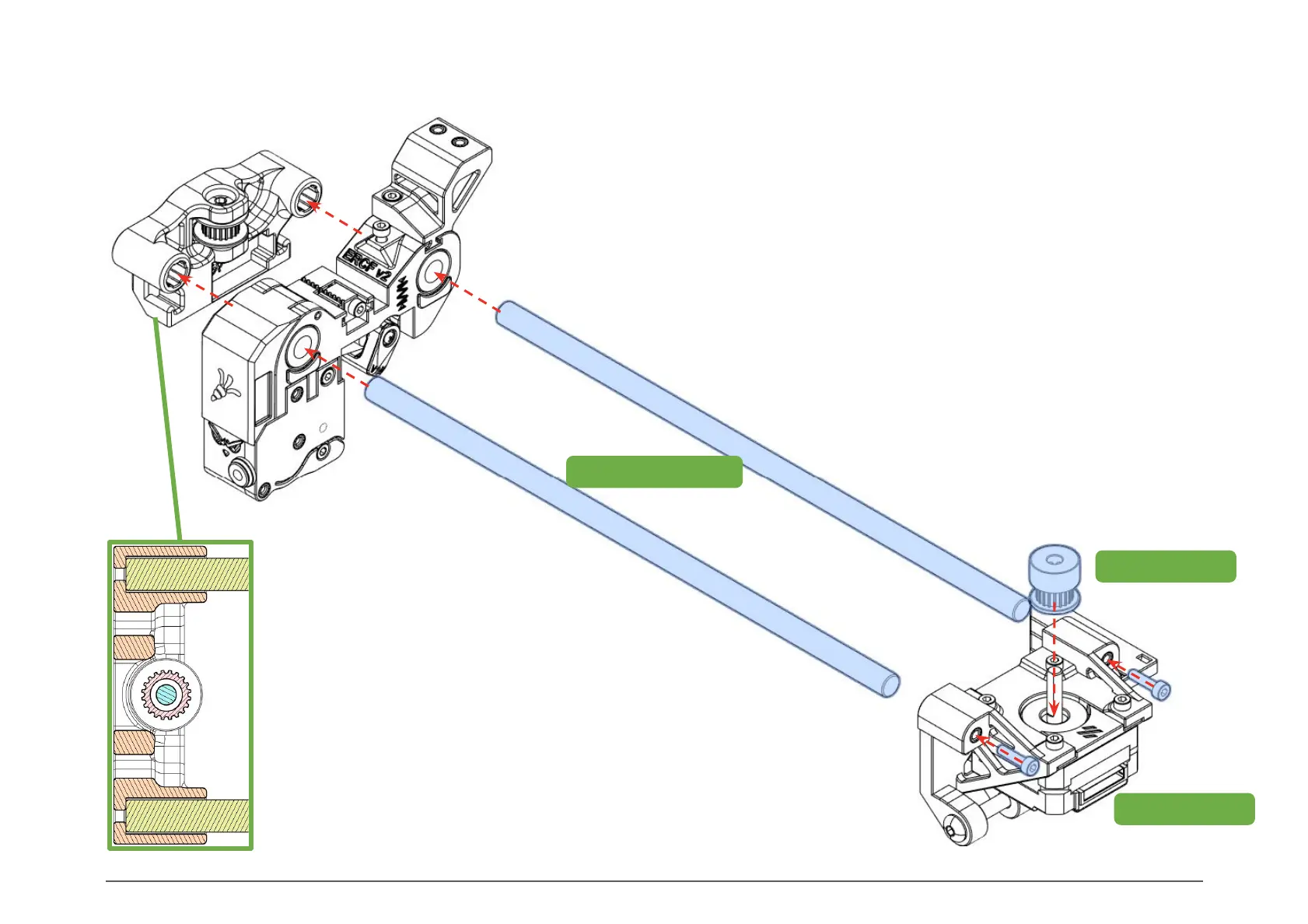

Carefully insert the 8mm Smooth Rods
through the LM8UU / RJ4JP-01-08
Selector_Cart bearings and fully into the
Linear_Axis_Idler_Block until they bottom
out.
There are holes at the end to allow you to
check if the rods are fully seated.
8mm Smooth Rods
MOTOR SIDE
Don’t fully insert the rods on the
motor side for now, set them in a
central position and just get the 2
M3x12 SHCS screws to contact.
Add the GT2 pulley and snug the
grub screw. We will adjust soon.
BEARING PREPARATION
If using LM8UU bearings, lightly grease
them using EP1/EP2 or Superlube grease.
Drylin RJ4JP-01-08 style bearings do not
need to be lubricated.
AXIS ASSEMBLY
GT2 Pulley
