CAD version: ERCF V2
111111
LINEAR AXIS
BELT INSTALLATION

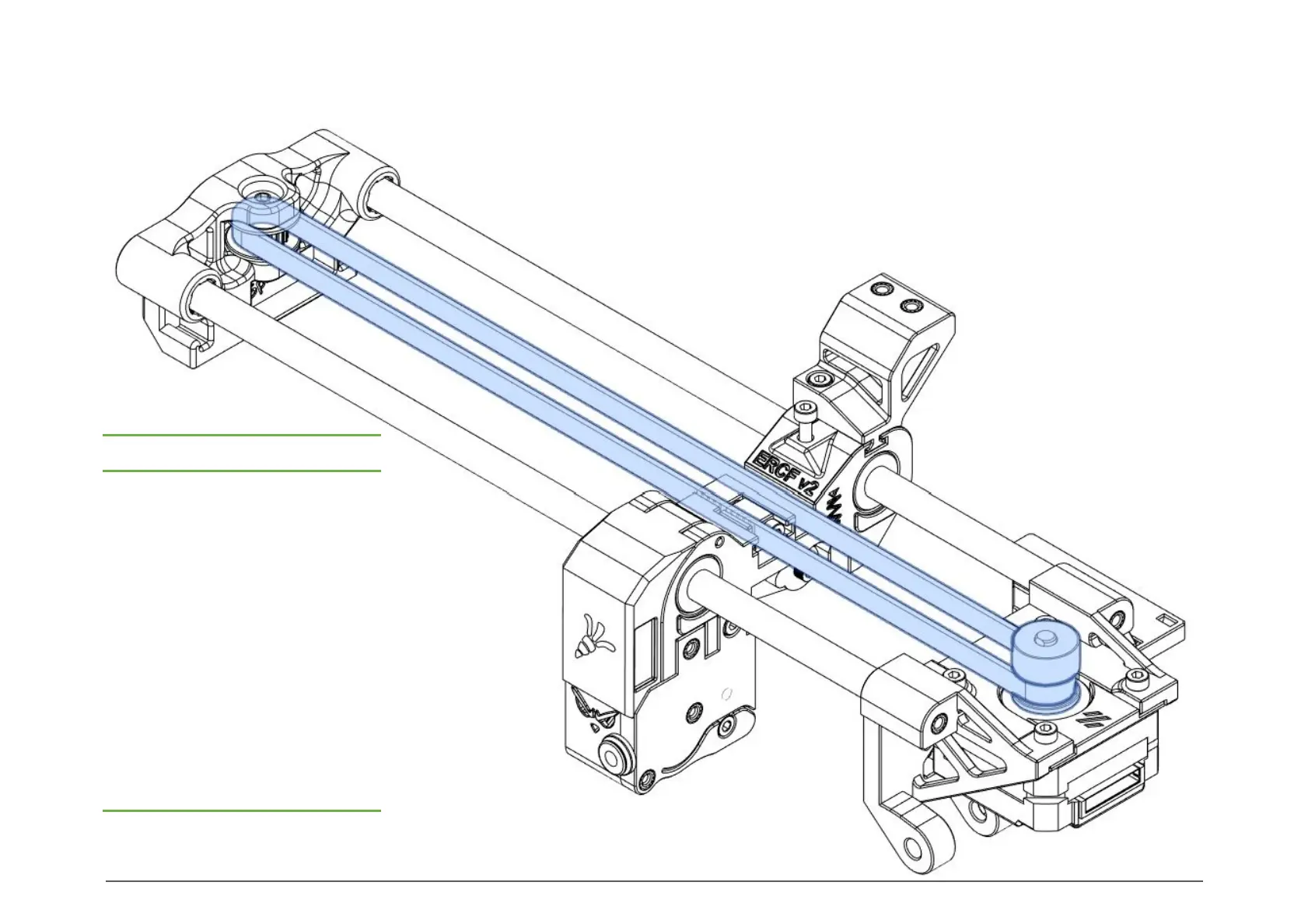

Install the pulley and run the belt clockwise from the Selector_Cart,
around the Idler, back across to the Selector Motor, and back to the
Selector_Cart. Mark the belt length with a paint pen or marker. Now
measure an additional 10mm of length, and cut the belt to the new
mark. This ensures room for adjustment in a later step.
PULLEY AND BELT INSTALLATION
Channels Approx Belt Length (mm)
N 165 + 46N
4 349
5 395
6 441
7 487
8 533
9 579
10 625
11 671
12 717
13 763
14 809
15 855
