FINAL ASSEMBLY
NEXT STEPS

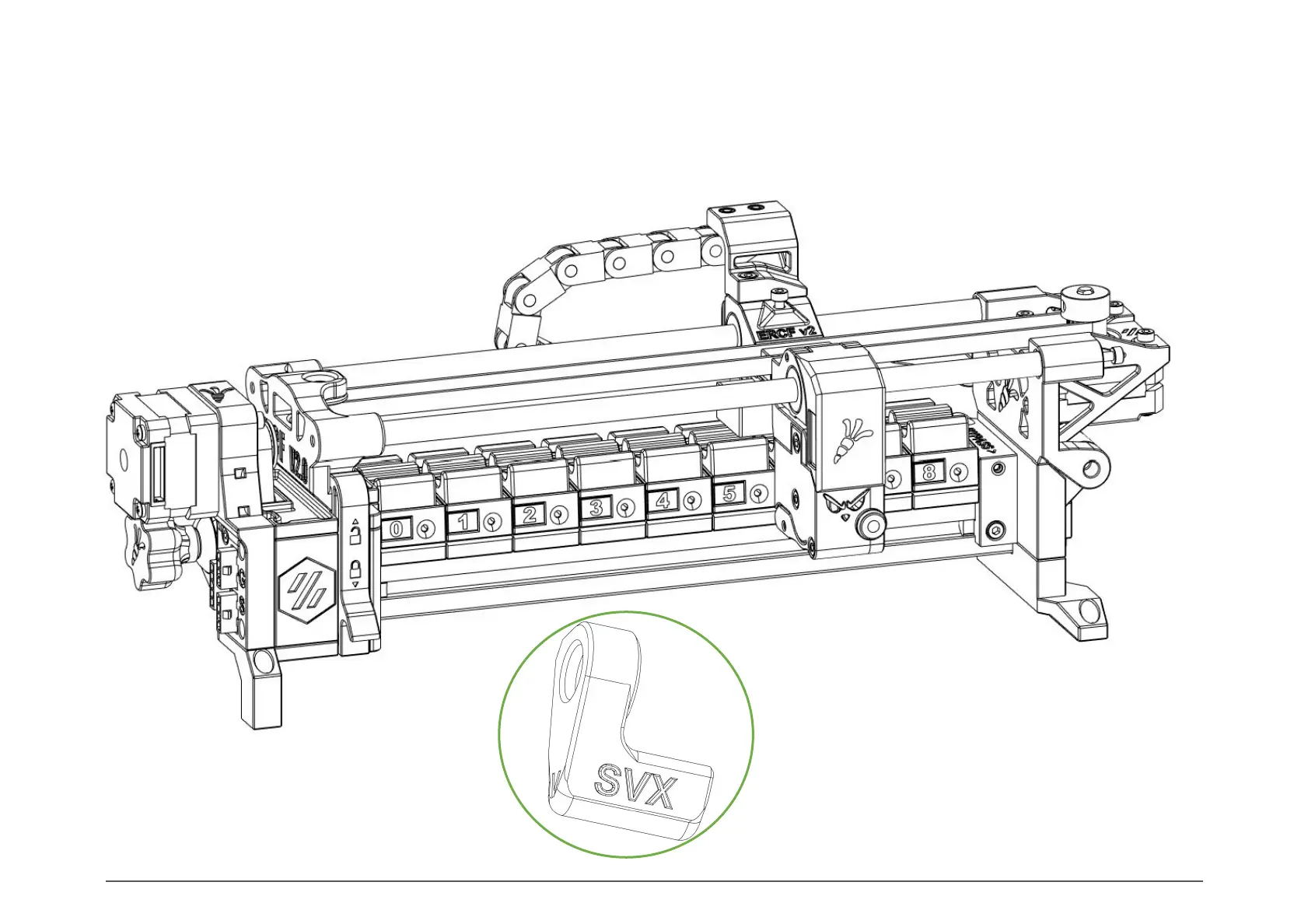

The ERCF is now fully assembled, except, as
you probably have noticed, for the Servo_Arm!
Its installation on the ERCF will be done as
part of the setup and calibration.
THE END! … OR ALMOST :D
