WIRING
Selector Endstop
MMB WIRING
Connect the Selector Endstop and optional Pre-Gate Sensor wires. Connect the Servo and Encoder wires.
Connect the Selector Motor and Gear Motor wires. Wiring color order may vary between manufacturers for stepper motors.
Keep a few cms of wires in the MMB box, it will be helpful in case you have to disassemble//reassemble.

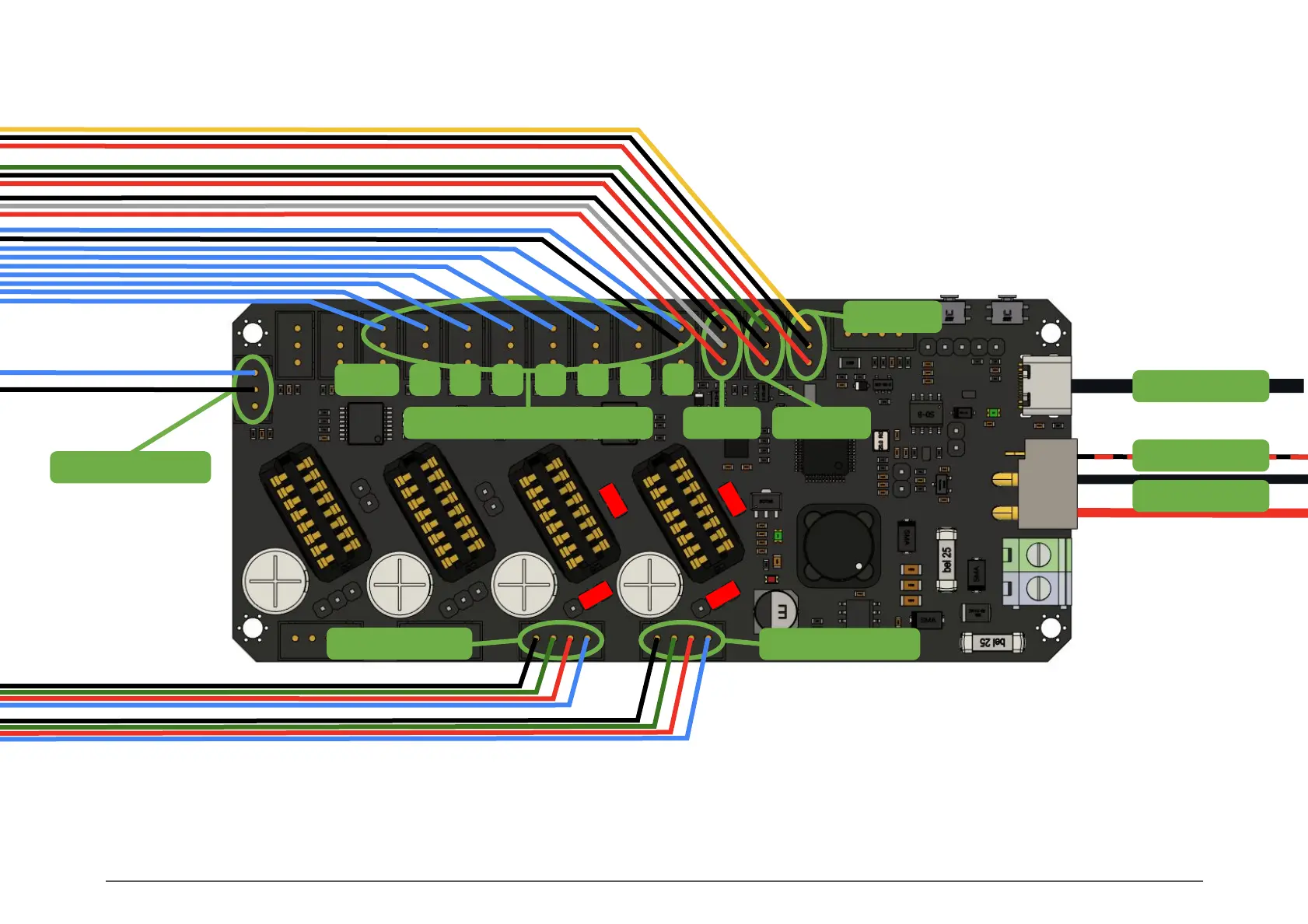

WIRING THE MMB
Selector Motor
Gear Motor
Encoder
Servo
Pre-Gate Sensors (Optional)
CANBUS H/L
Power
USB
LEDs
Gate 7
6 5 4 3 2 1
0
