FINAL ASSEMBLY
Zip Tie

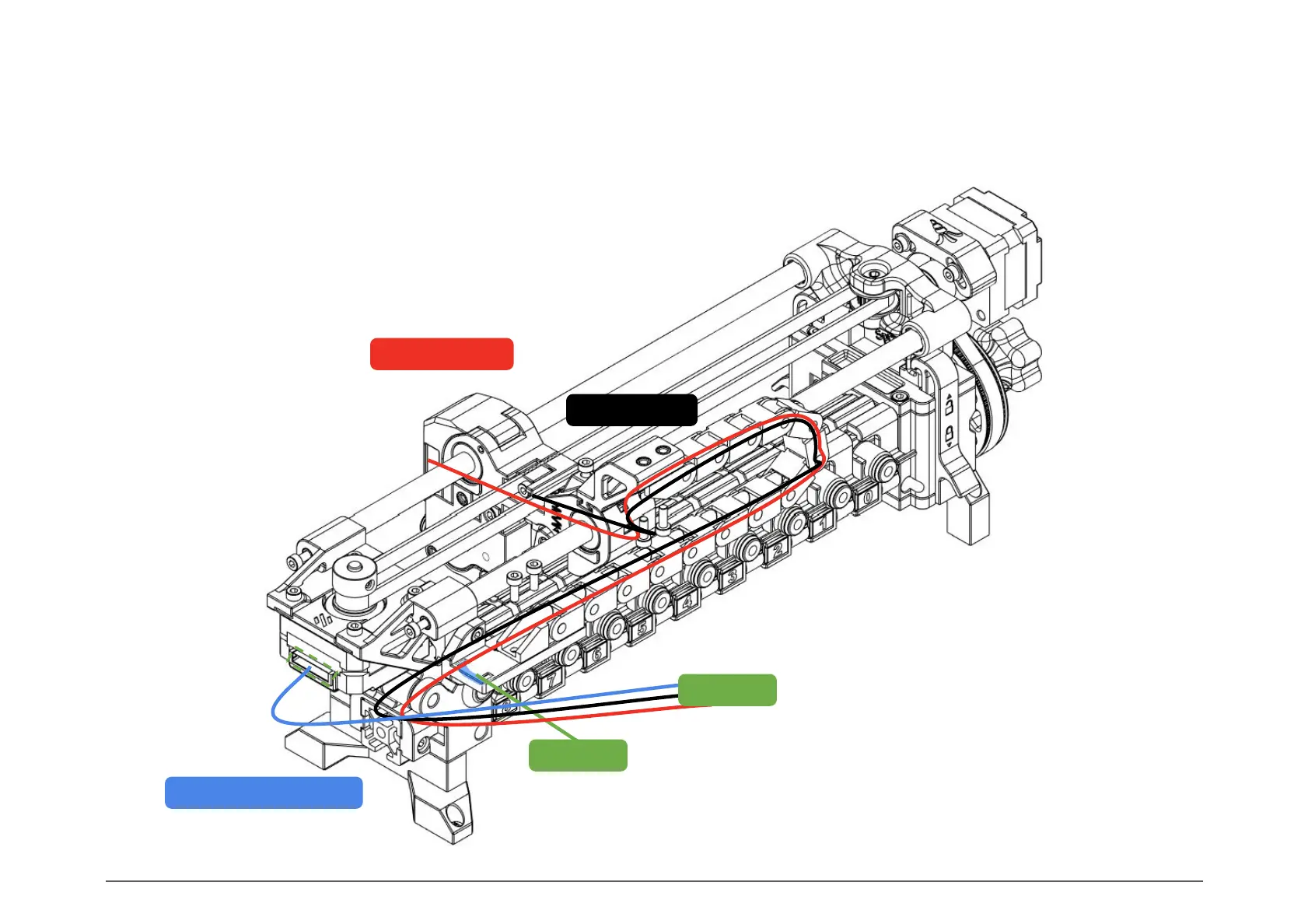

WIRING
Secure the drag chain wires using a zip tie.
SELECTOR MOTOR
You can now crimp and add
the connector to the
Selector Motor wire.
ERCF
Selector Motor Wires
Encoder Wires
Servo Wires
To MCU
