FINAL ASSEMBLY
Wires
M3x8 FHCS
DRAG CHAIN

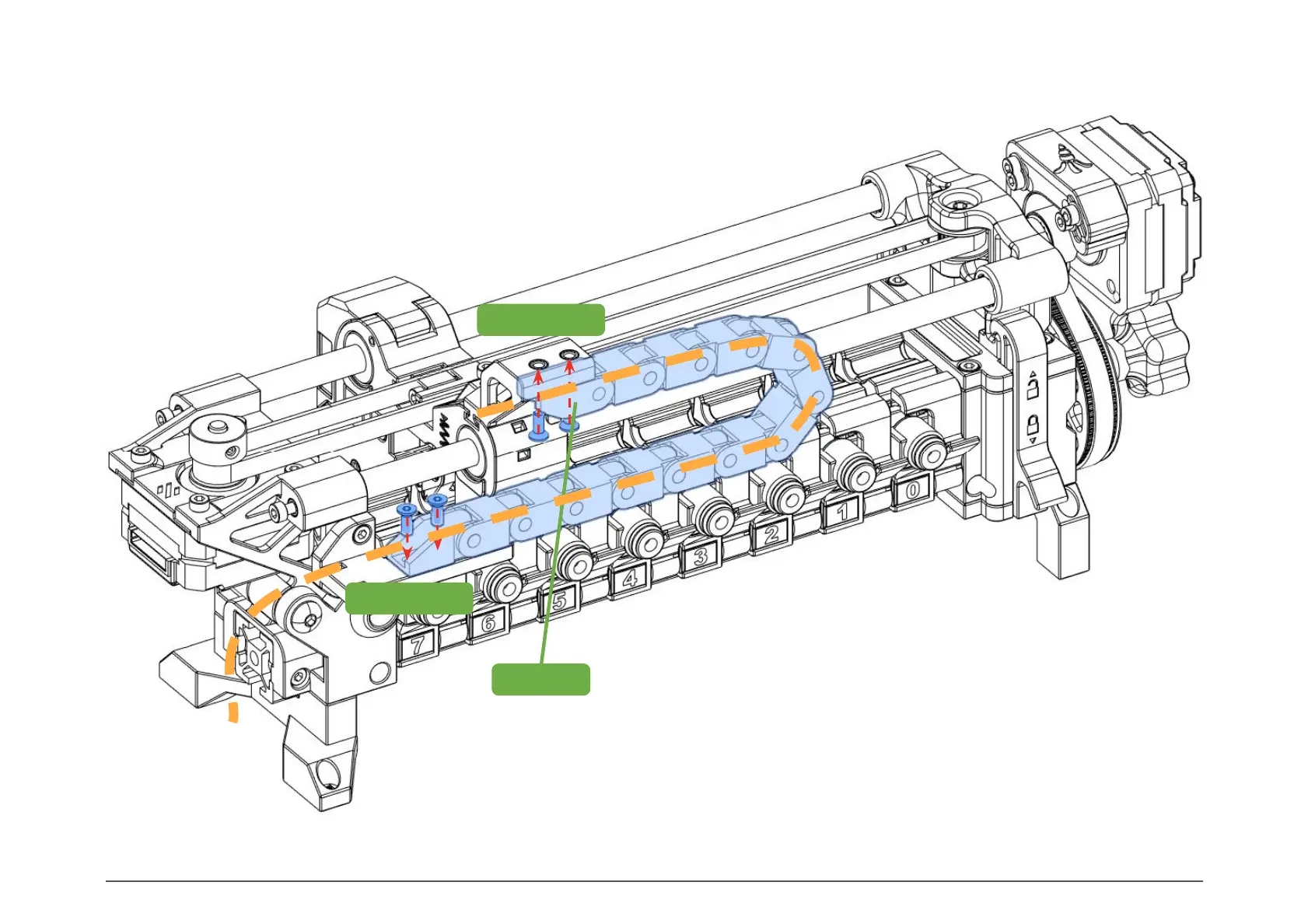

Pass the Servo and Encoder wires in the drag chain and then fix
both of its ends to the ERCF with 2 M3x8mm FHCS screws at each
end (total of 4 FHCS)
M3x8 FHCS
DRAG CHAIN
