WWW.VORONDESIGN.COM
CAD version: ERCF V2

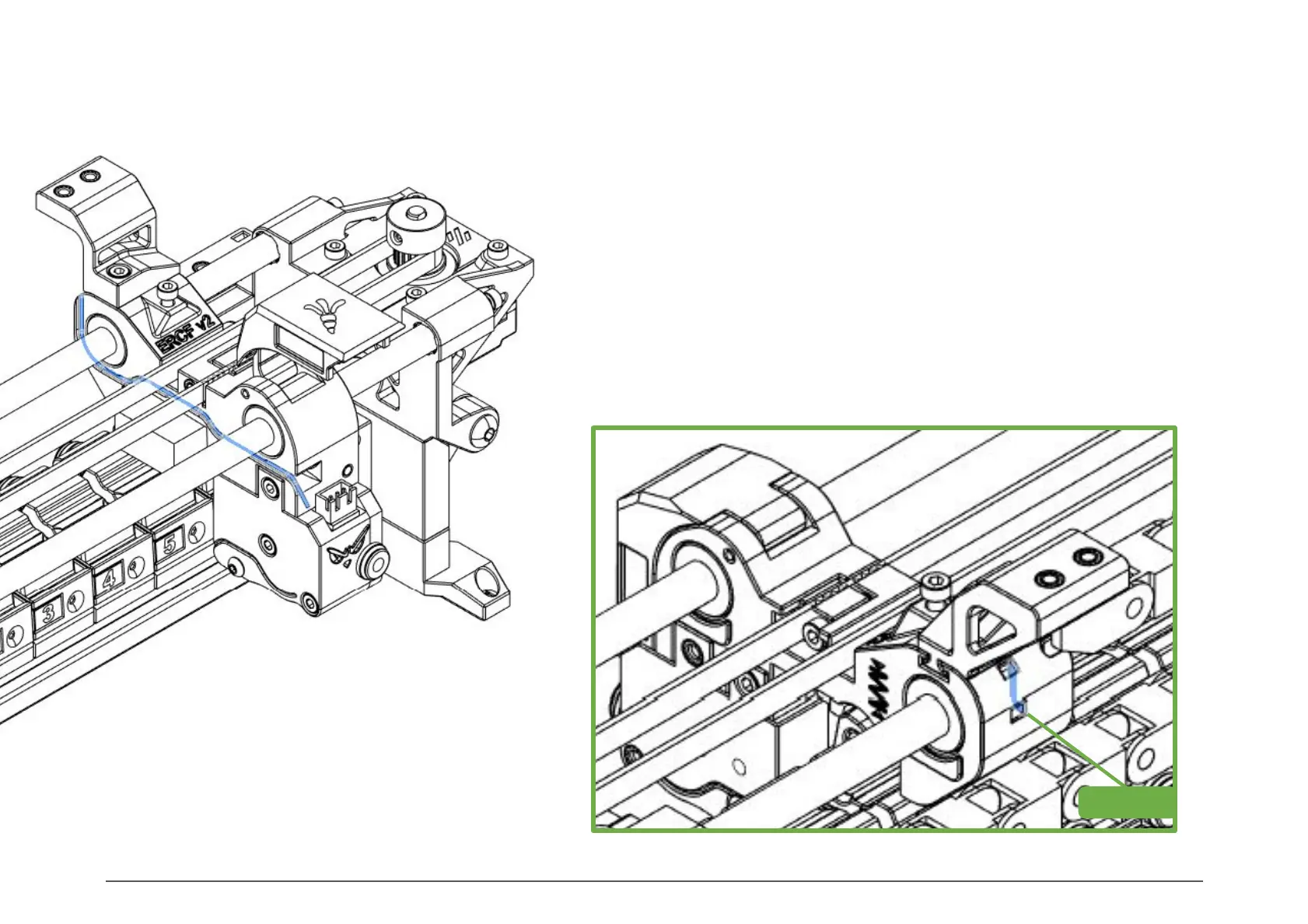

ENCODER WIRES
Pass one of the Encoder wires into the dedicated channel in the
Selector_Cart to define the wire length needed to plug into the
Encoder.
Cut excess wire, remove the wire from the channel and do the
crimps (Dupont or JST XH will work) for all wires.
Pass all the wires in the channel, then connect the
Encoder and close the Selector_Door.
SERVO WIRES
Cut excess wires and connect the Servo (you can use a Dupont
connector for example).
Secure both the Servo and Encoder wires using a zip tie.
122122
FINAL ASSEMBLY
Zip Tie
FULL ERCF
To Next Page
