CAD version: ERCF V2

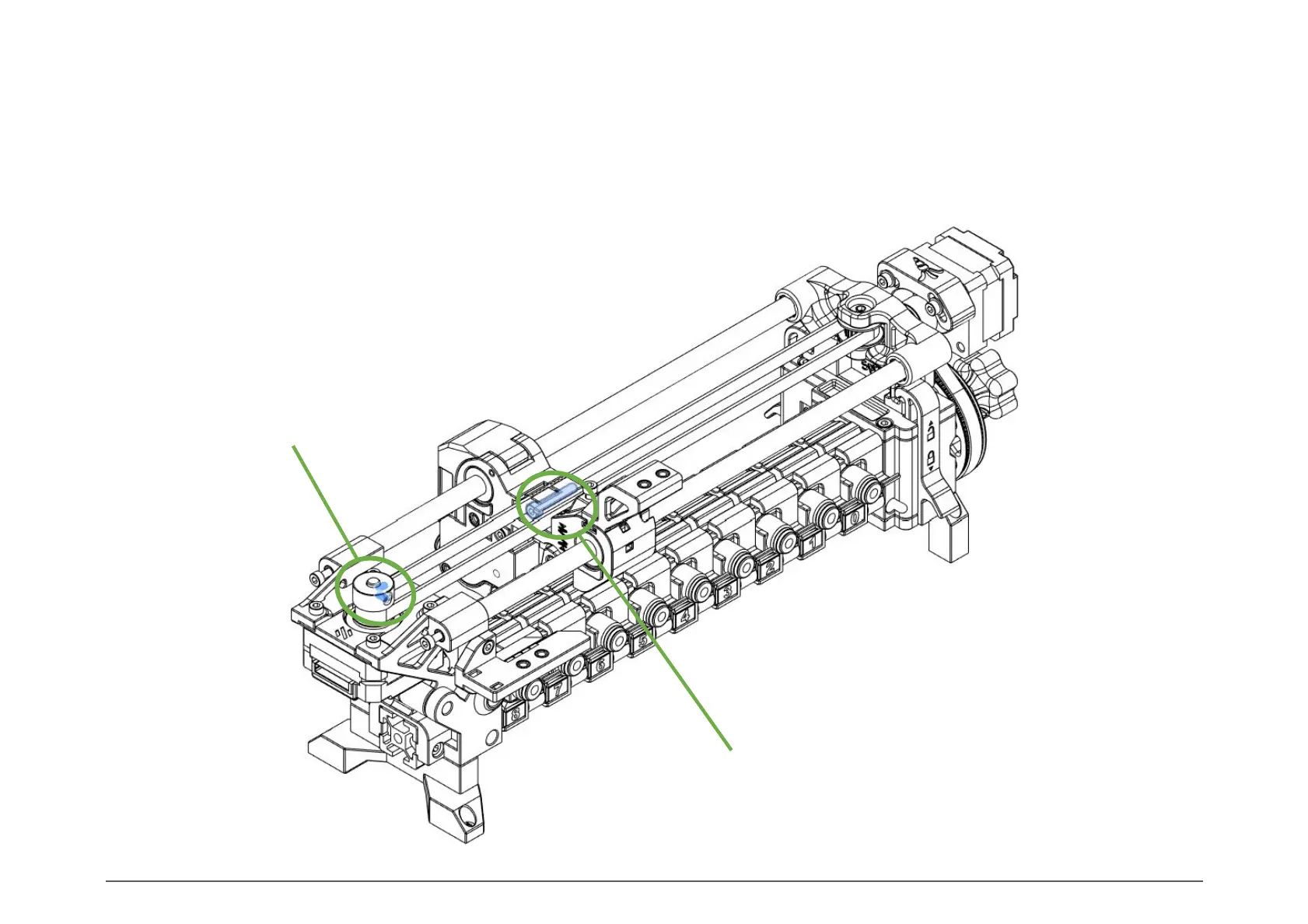

SET SCREWS
Move the Selector as close to the Selector
Motor as you can get it.
Align the pulley with the belt and then
tighten both M3 set screws.
Next, remove one of the set screws and
apply thread locker to the threads before
reinstalling and tightening it. Repeat for
the other screw.
121121
FINAL ASSEMBLY
BELT TENSION
Once the set screws are tightened, adjust the belt
tension by tightening the belt tensioner M3x20.
Now you can trim your belt to its final length.
TENSIONING THE BELT
