ELECTRONICS BOX ASSEMBLY
END CAP ASSEMBLY

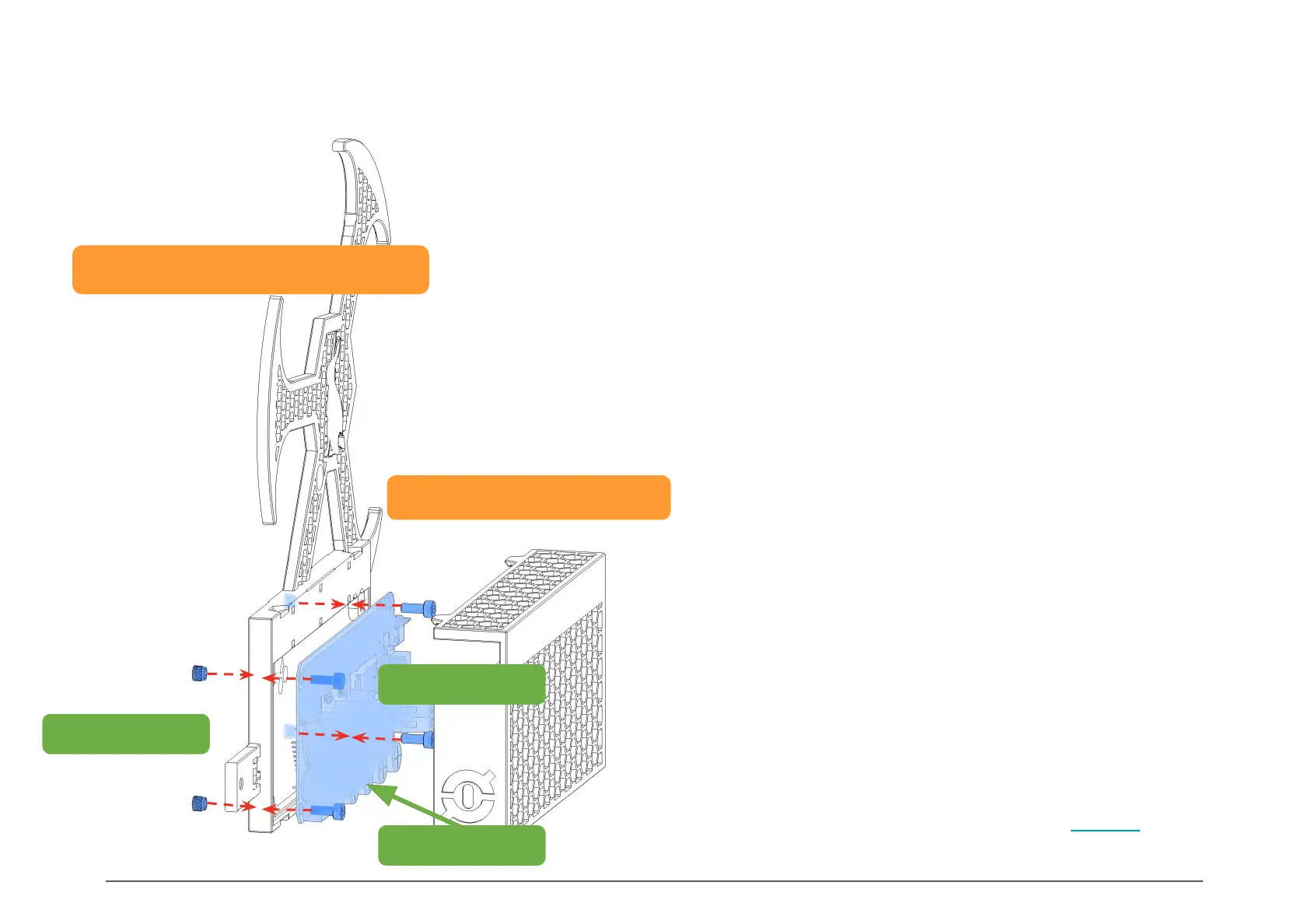

Insert (4) M3 Heat Set inserts into the holes on the flat side
of the Support_Arm_Endcap.
Add the BTT MMB Control board into the inset on the
opposite side. There are two indents for the BOOT and
RESET buttons on the board to give you the correct
orientation.
Add (4) M3 x 8mm SHCS screws to secure the board.
Set aside Box_Lid for snap installation after wiring is
completed.
BTT_MMB_Support_Arm_Endcap
BTT_MMB_Box_Lid
ARM END CAP ASSEMBLY
BTT MMB
M3 Heat Set Inserts
M3 X 8mm SHCS
HEAT SET INSERTS
The list of pages with heat set inserts is on Page 15.
