CAD version: ERCF V2
138138
2020 INSTALLATION
4 OD/3 ID PTFE Tube
MOUNTING ARMS (PER ARM GROUP)
Preload the M3 Roll-in T-nuts into the bottom
of the 2020 Extrusion.

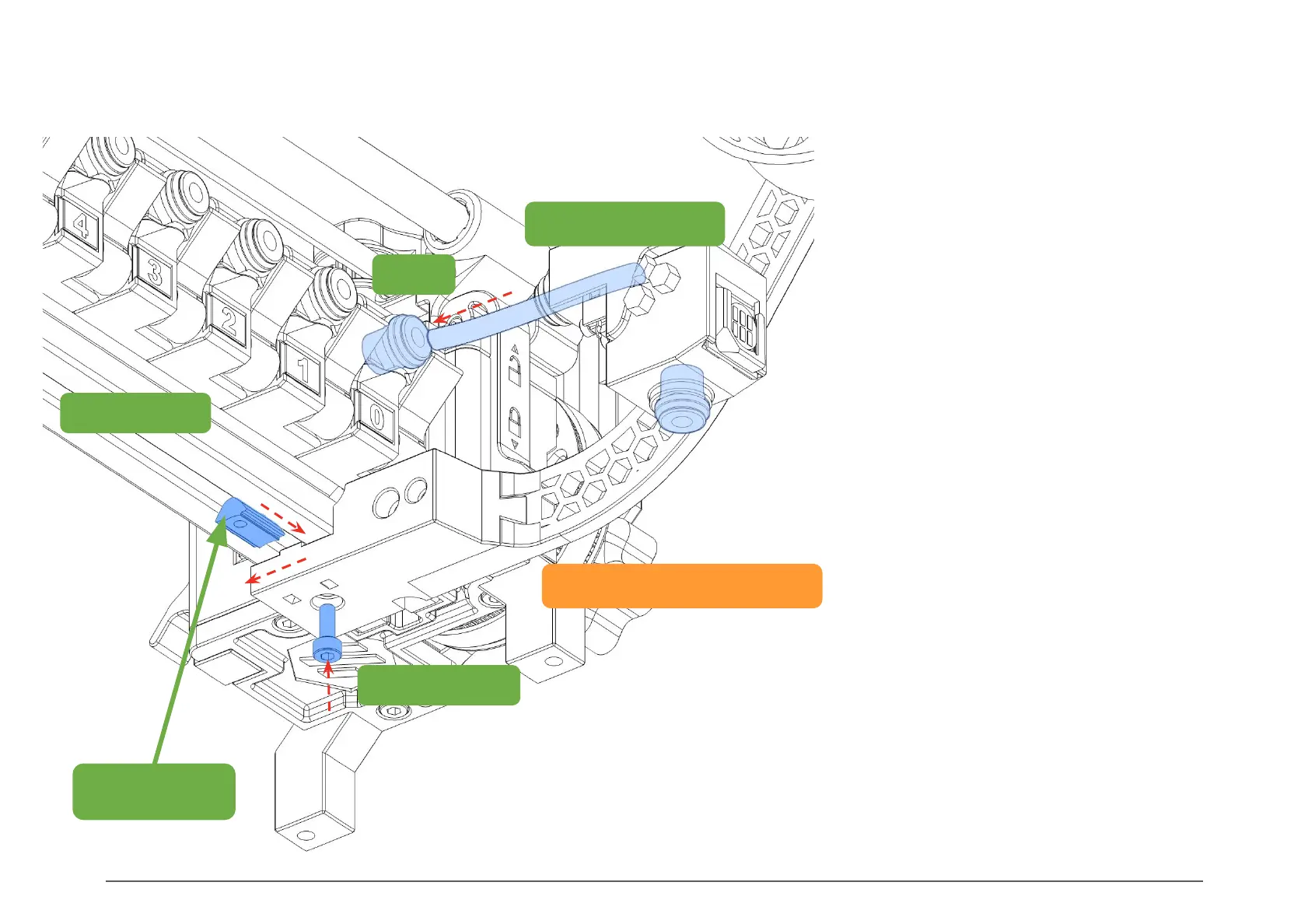

Take the Support_Arm assembly, and line up
the PTFE tube to the ECAS on the Filament
Block. Mount the Arm onto the 2020 extrusion
by lining up the T-nut, then tightening down
the M3 x 8mm SHCS screw. Slide the assembly
along the 202 to align the arm.
Alternatively you can align the arm to the
T-nuts without the Coupler_Block unattached.
After it’s aligned, add the Coupler_Block with
the PTFE Tube.
Repeat these steps with each arm.
Support_Arm & Mount
ERCF INSTALLATION
ECAS
2020 Extrusion
M3 Roll-in T-Nuts
M3 x 8mm SHCS
To Next Page
