ARM GROUPS PREPARATION
WIRING PRE-GATE SWITCHES
Trim extra wiring
before crimping
and plugging
them into the BTT
MMB

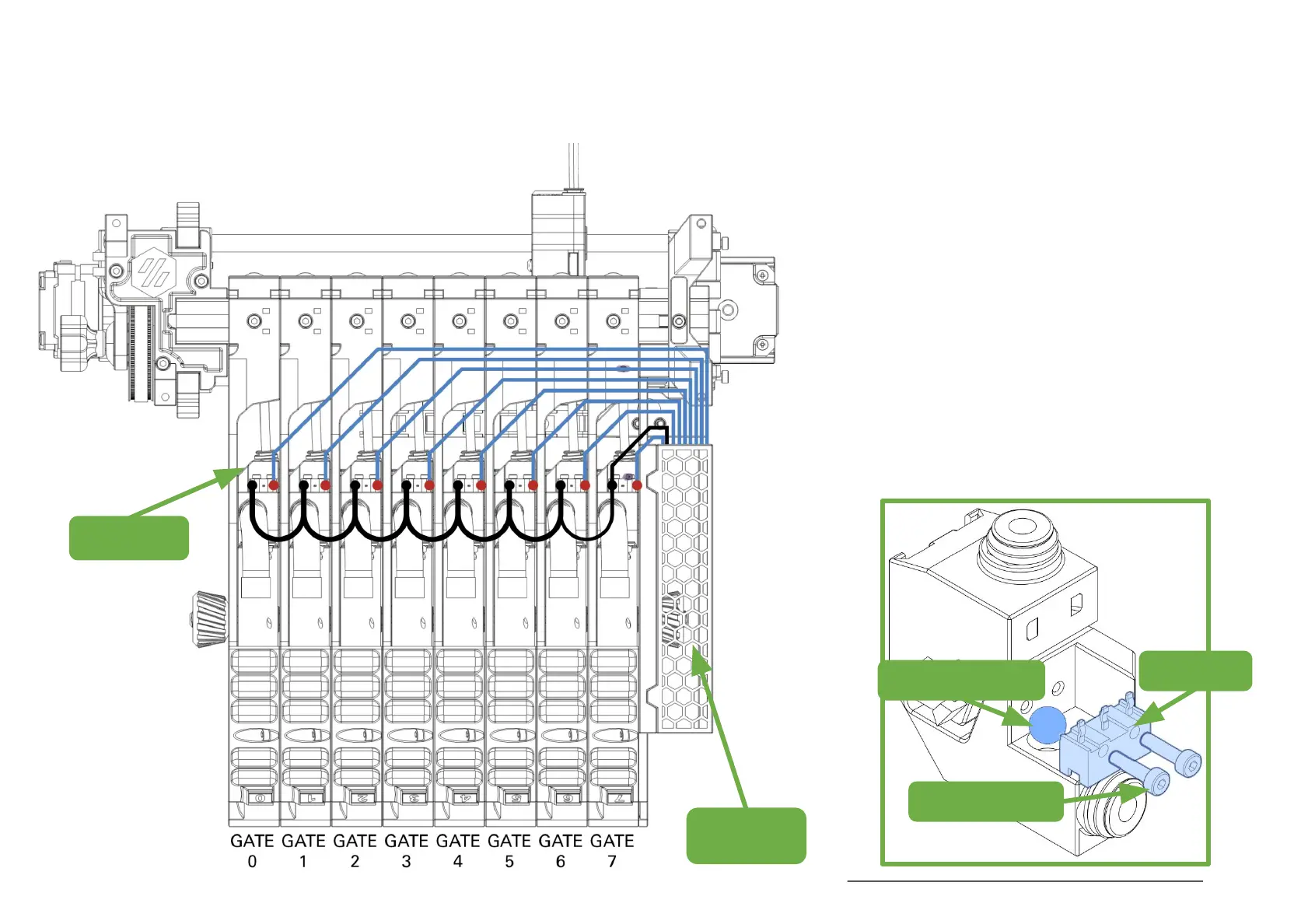

Bottom view of ERCF
Microswitch
BTT MMB
WIRING SENSORS
Make sure you follow the
recommended lengths to ensure
that the switches are not binding
on the Coupler_Block’s upper
sprung section.
Drop a 5.5mm ball bearing into
each Coupler and install each of the
microswitches with 2x M2x8 or
10mm SHCS.
Microswitch
5.5mm Ball Bearing
M2x10mm SHCS
