WWW.VORONDESIGN.COM
CAD version: ERCF V2
141141
AXLE MOUNTING
END CAP ASSEMBLY

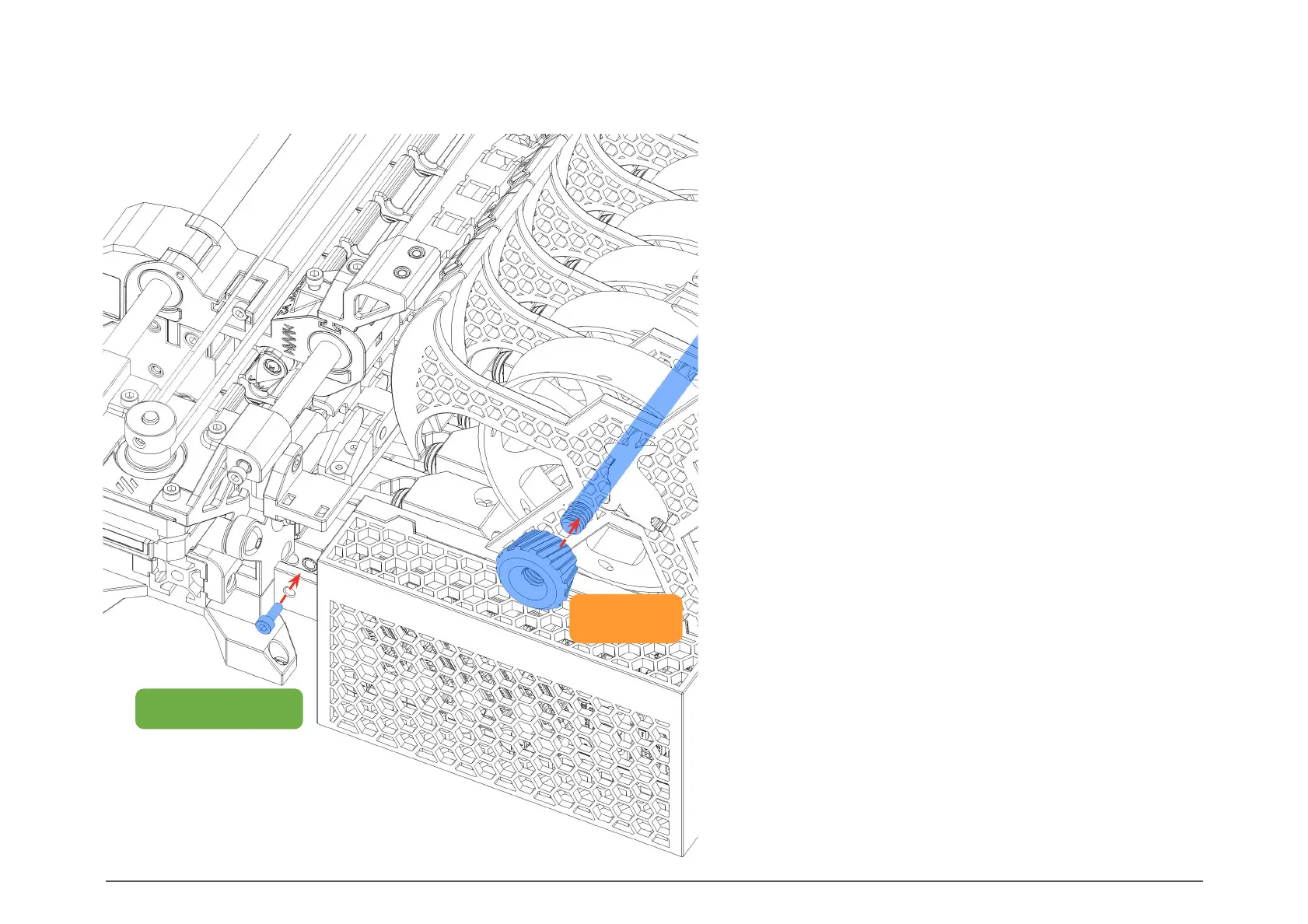

Next step is to put the Support_Arm_Endcap and
electronics box onto the axle.
Line up the screw to the secondary hole on the
Support_Arm_Mount you have set aside with the
single heat set for the end cap.
Add the second Knut, but don’t over tighten. It only
needs to hold the axle from wiggling back and forth.
Knut
ARM END CAP ASSEMBLY
M3 X 8mm SHCS
To Next Page
