SECURING ARM ARRAY
SECURE ARMS

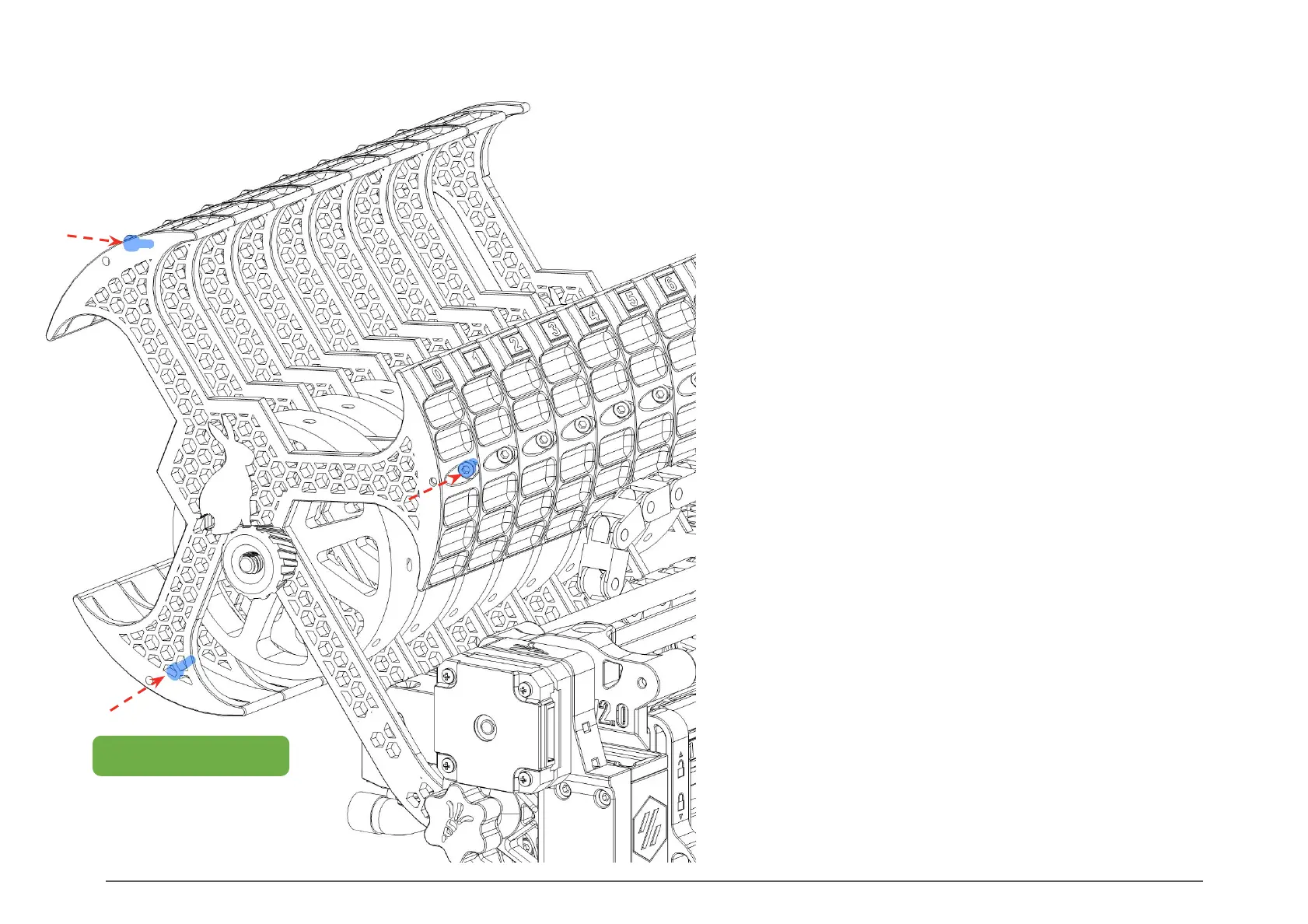

The final step is to install (3) M3 X 8mm SHCS screws
into each of the angled holes. Do not over tight or it
will strip the plastic.
Check each of the Buffer_Wheels as you secure each
arm and ensure they spin relatively freely. There is
always a small amount of friction, but as long as it
spins without too much restriction, it will not be
affected by the light contact.
FINAL ASSEMBLY
(3) M3 X 8mm SHCS
To Next Page
