VORON ERCF v2 - Page 26

WWW.VORONDESIGN.COM
CAD version: ERCF V2
GEARBOX
A
I
D
B
J
1x 2020 Extrusion
2x M2x8mm SHCS
4x M3 Roll In Nuts
13x M3 Threaded Inserts
1x M3x6mm SHCS
4x M3x8mm SHCS
1x M3x12mm SHCS
2x M3x20mm SHCS
1x Microswitch
2x MR85ZZ Bearings
A
B
C
D
E
F
G
H
I
J
GEARBOX SUB-BOM FOR STEP 1
2626
L
M
K
1x [a]_Side_Latch_x2.stl †
1x Gear_Box_Back.stl
1x Gear_Box_Front.stl
K
L
M
C

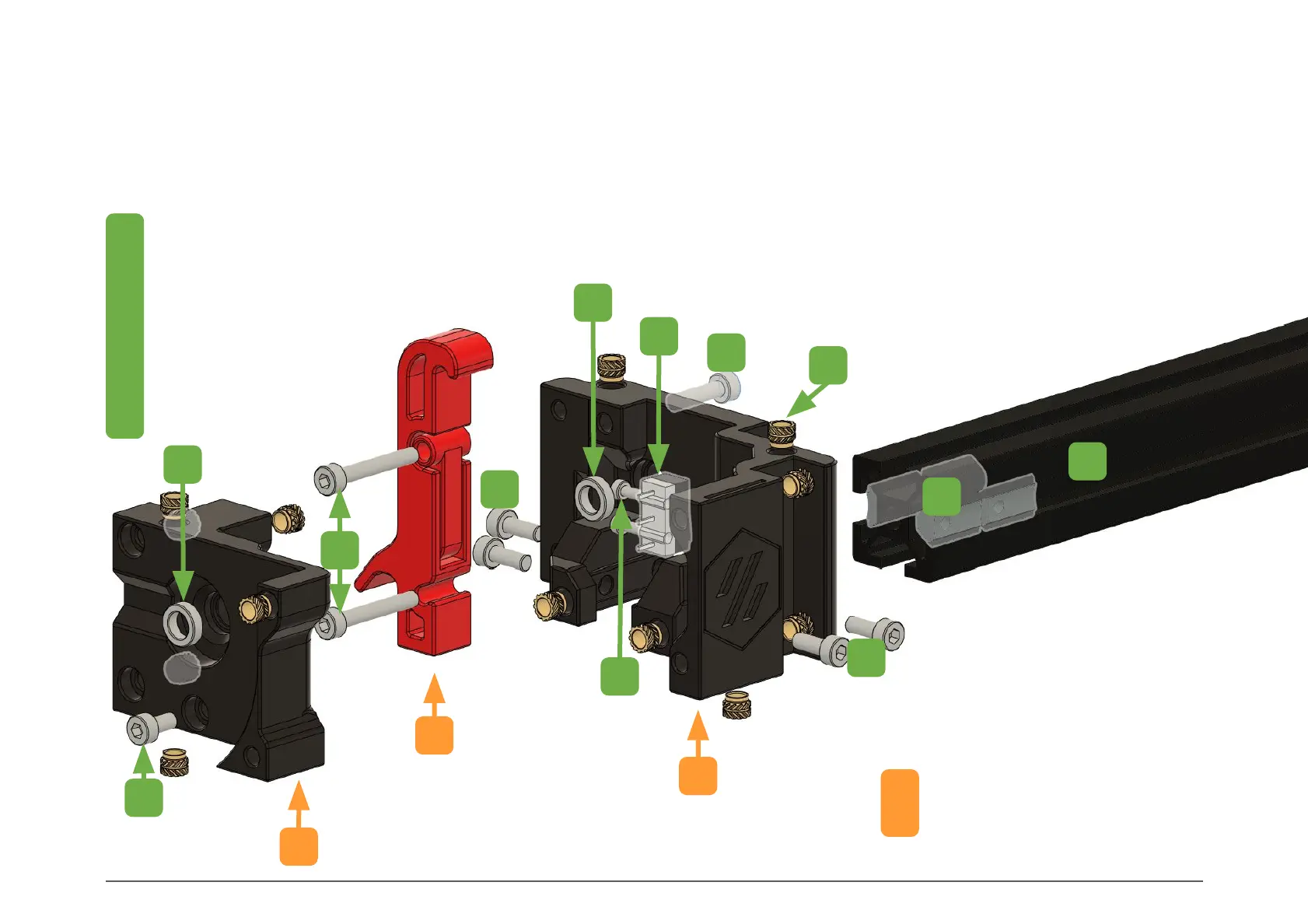

EXPLODED VIEW
J
F
E
F
G
H
