GEARBOX

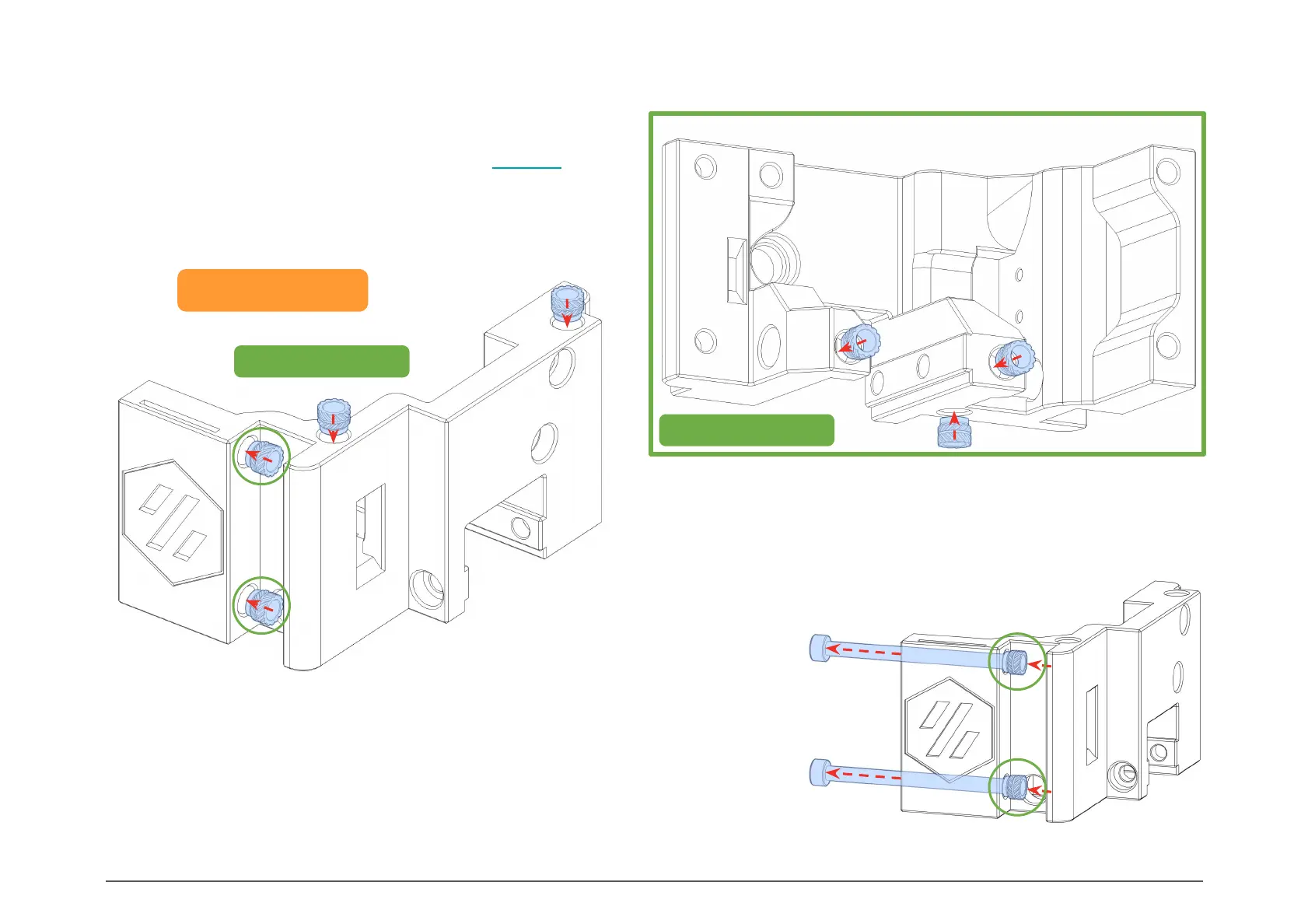

HEAT SET INSERTS TIP
Pull these inserts using the soldering iron from the side and take your time to
make them flush with the surface and aligned with the screw path. You can
use a long M3 screw, inserted from the left, to hold and pull the heat insert in
their slot.
M3 Heat Set Inserts
Gear_Box_Front
M3 Heat Set Inserts
GEARBOX FRONT PREPARATION
HEAT SET INSERTS
The list of pages with heat set inserts is on Page 15.
To Next Page
