CAD version: ERCF V2
2828
GEARBOX

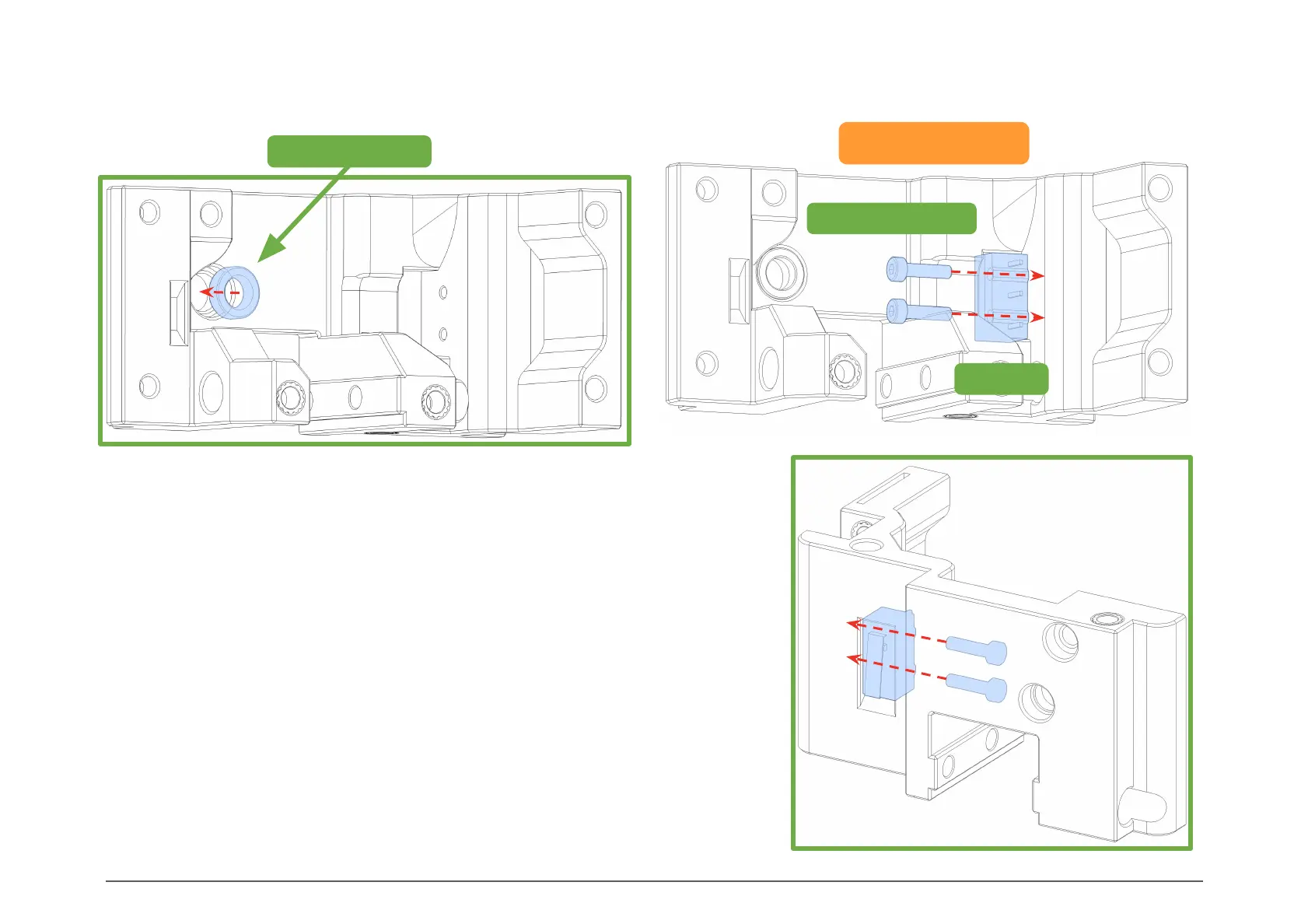

MR85ZZ BEARING INSERTION
If your printed parts are accurate, the bearing should press-fit easily into
place. If you’re having trouble seating the bearings, make sure the
channel is clear of drooping overhangs, and try pulling the bearing into
place with an M5 bolt.
M2 SCREWS
It can be helpful to pre-thread the holes with one of the M2 screws.
Remember not to go too deep, you might strip it out!
Use an extra-long 1.5mm hex wrench if you have it.
MICRO SWITCH ORIENTATION
If you are using a levered micro switch, install it as shown, with the lever
opening to the bottom. In case you are using a micro switch without a
lever, invert it so the button is on the bottom and will line up with the
Encoder M3 SHCS end stop.
M2x8 or 10 SHCS
D2F-5L
Gear_Box_Front
SELECTOR ENDSTOP INSTALLATION
MR85ZZ Bearing
