GEARBOX
M3 Roll-in Nuts

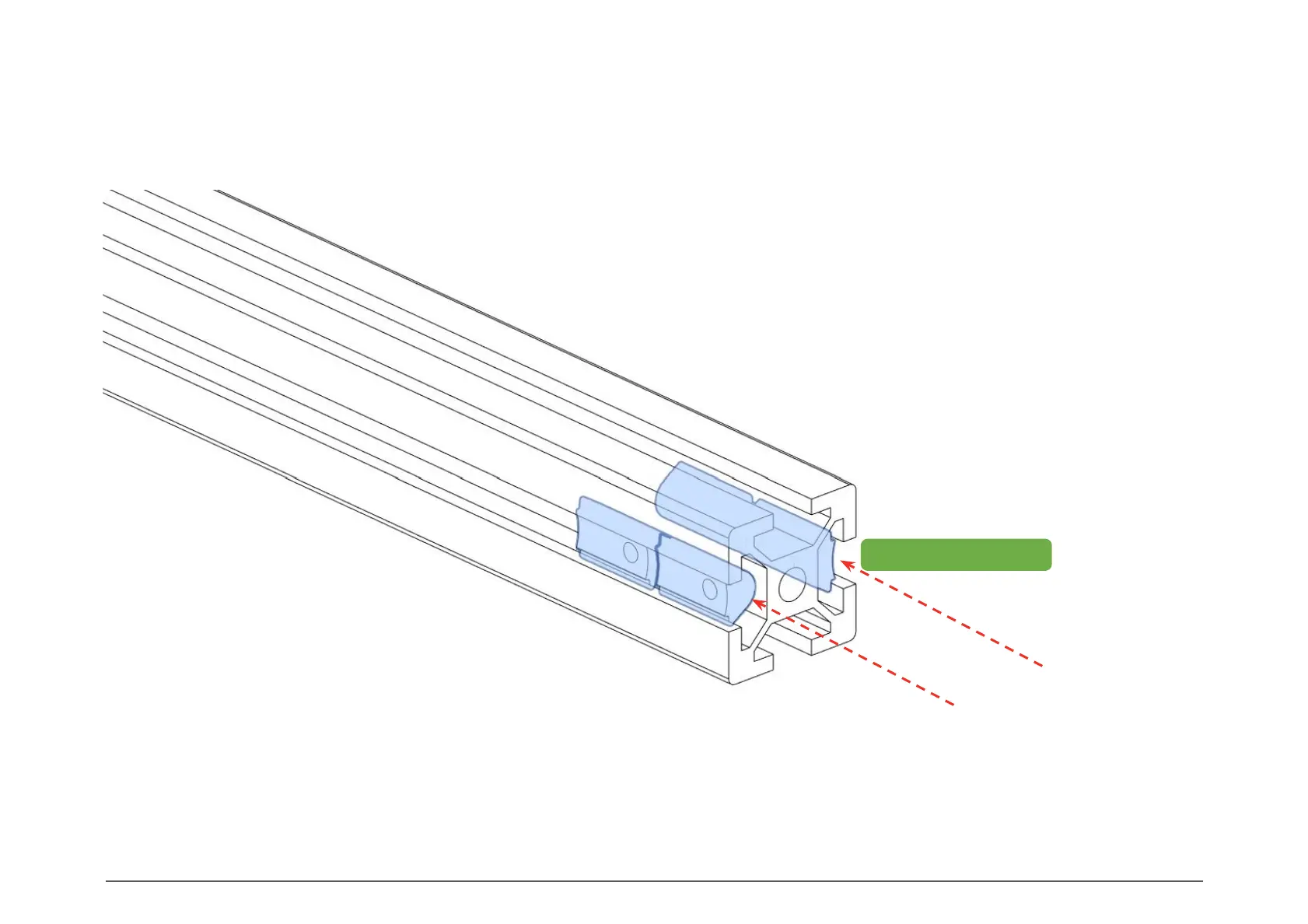

ADD M3 T-NUTS
Slide the 4 M3 T-Nuts onto the 2020 extrusion
in preparation to mount the gearbox. Note the
correct orientation, with the mounting hole
toward the end of the extrusion.
2020 PREPARATION
