WWW.VORONDESIGN.COM
CAD version: ERCF V2
3636
GEARBOX
M3x8 BHCS

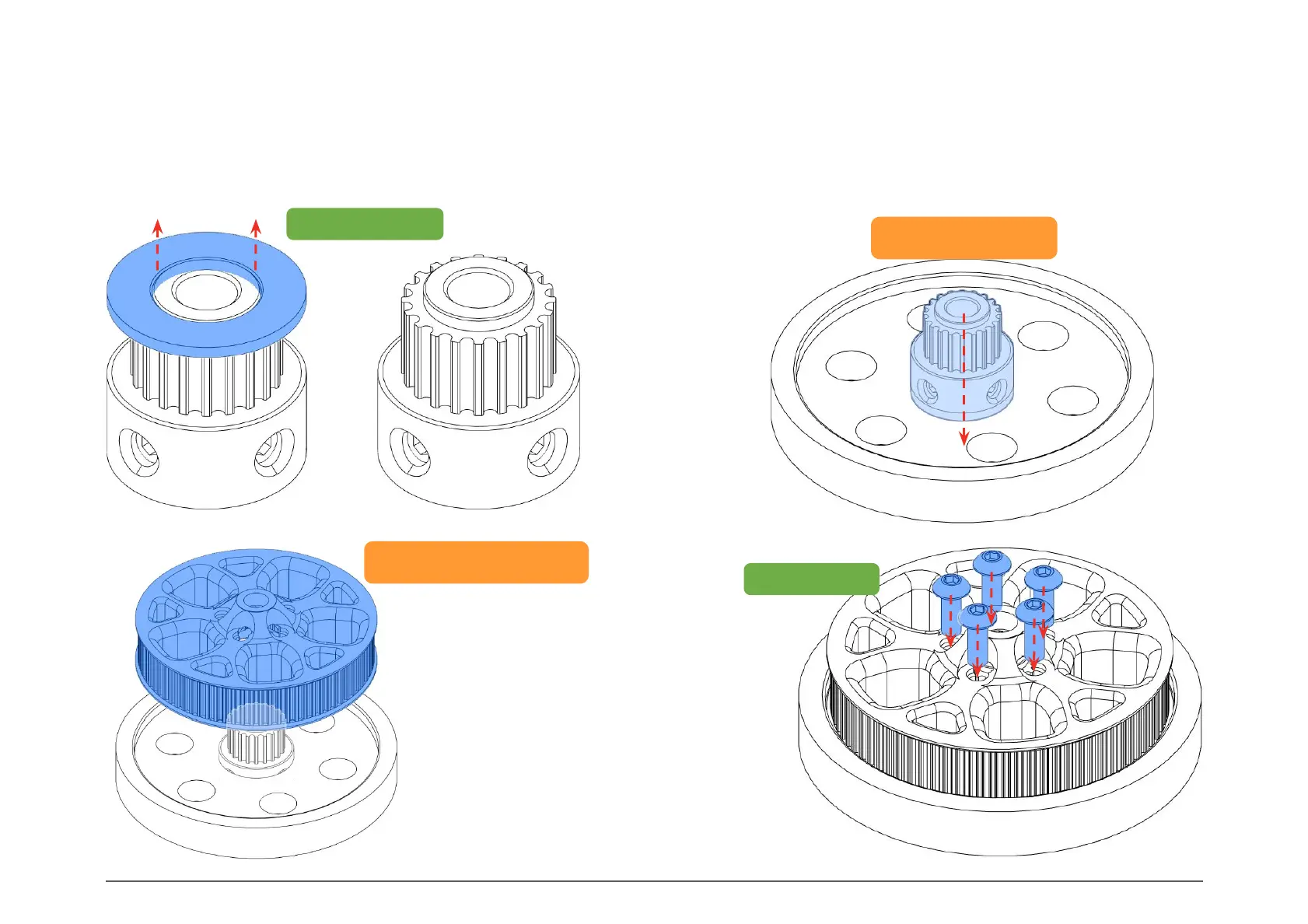

REMOVE FLANGE
Use pliers to gently remove the top flange of
the GT2 pulley.
GT2 20T Pulley
[a]_M4_80T_Wheel †
FINISH MOUNTING
Insert the M4_80T_Wheel onto the GT2
pulley and press it flat to the guide.
Add 5 M3x8 BHCS to secure the wheel in
place. Gently tighten the screws in a star
pattern (skipping every other screw) until
the hub is snug. Don’t overtighten, you’ll
strip the plastic, or worse, the pulley!
80T GEAR ASSEMBLY
INSERT PULLEY
Place the GT2 pulley into the 80T_Cog_Guide.
80T_Cog_Guide
To Next Page
