VORON ERCF v2 - Drive Shaft and Gear Assembly

WWW.VORONDESIGN.COM
CAD version: ERCF V2
GEARBOX
A
C
B
D
1x 5mm D-Cut Rod
1x GT2 Belt Loop, 188mm
2x GT2 Pulley 20-tooth
5x M3x8mm BHCS
A
B
C
D
GEARBOX SUB-BOM FOR STEP 2
3535
G
F
1x [a]_Bearing_Spacer_x2.stl †
1x [a]_Knob.stl †
1x [a]_M4_80T_Wheel.stl †
E
E
F
G

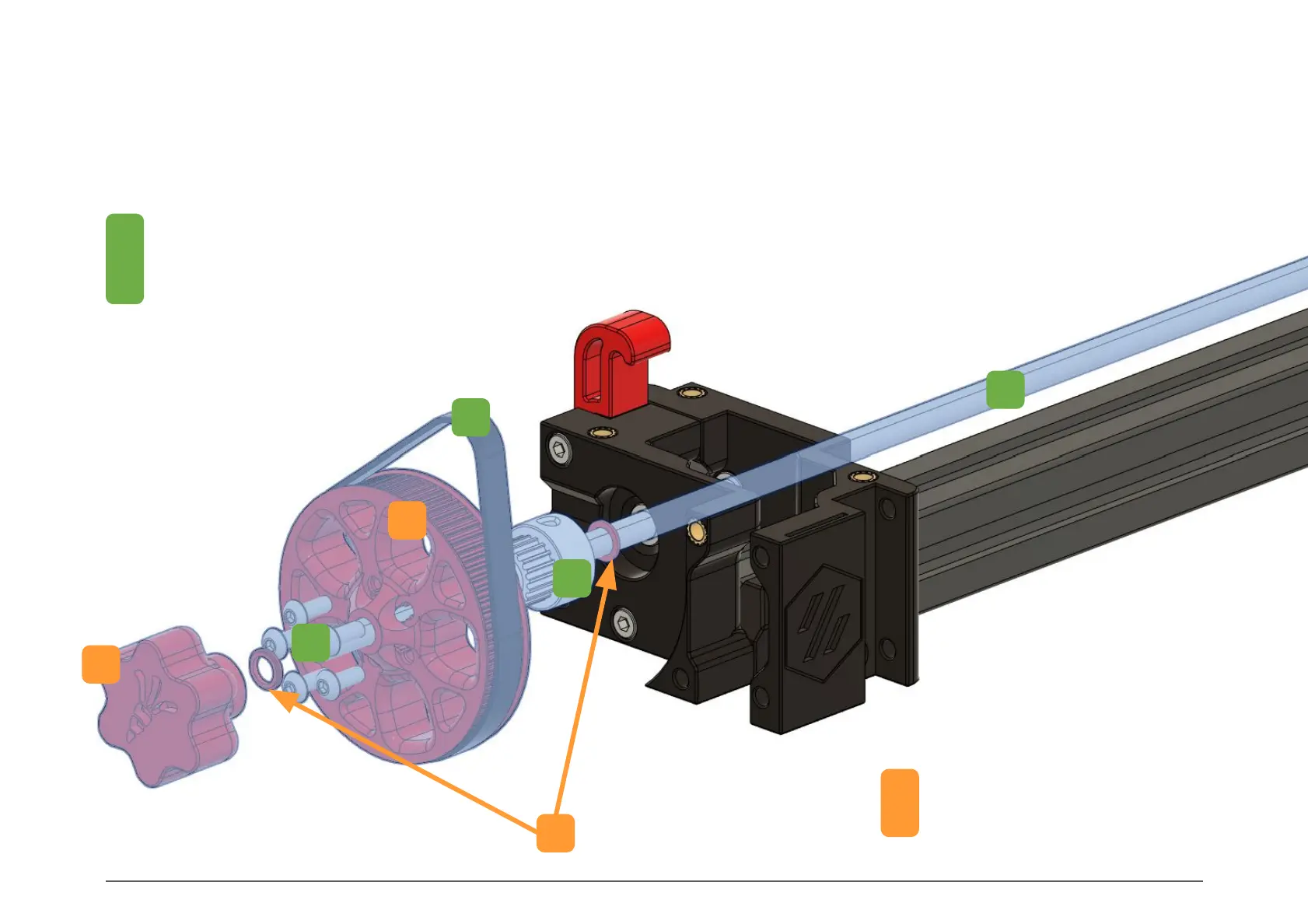

EXPLODED VIEW
