CAD version: ERCF V2

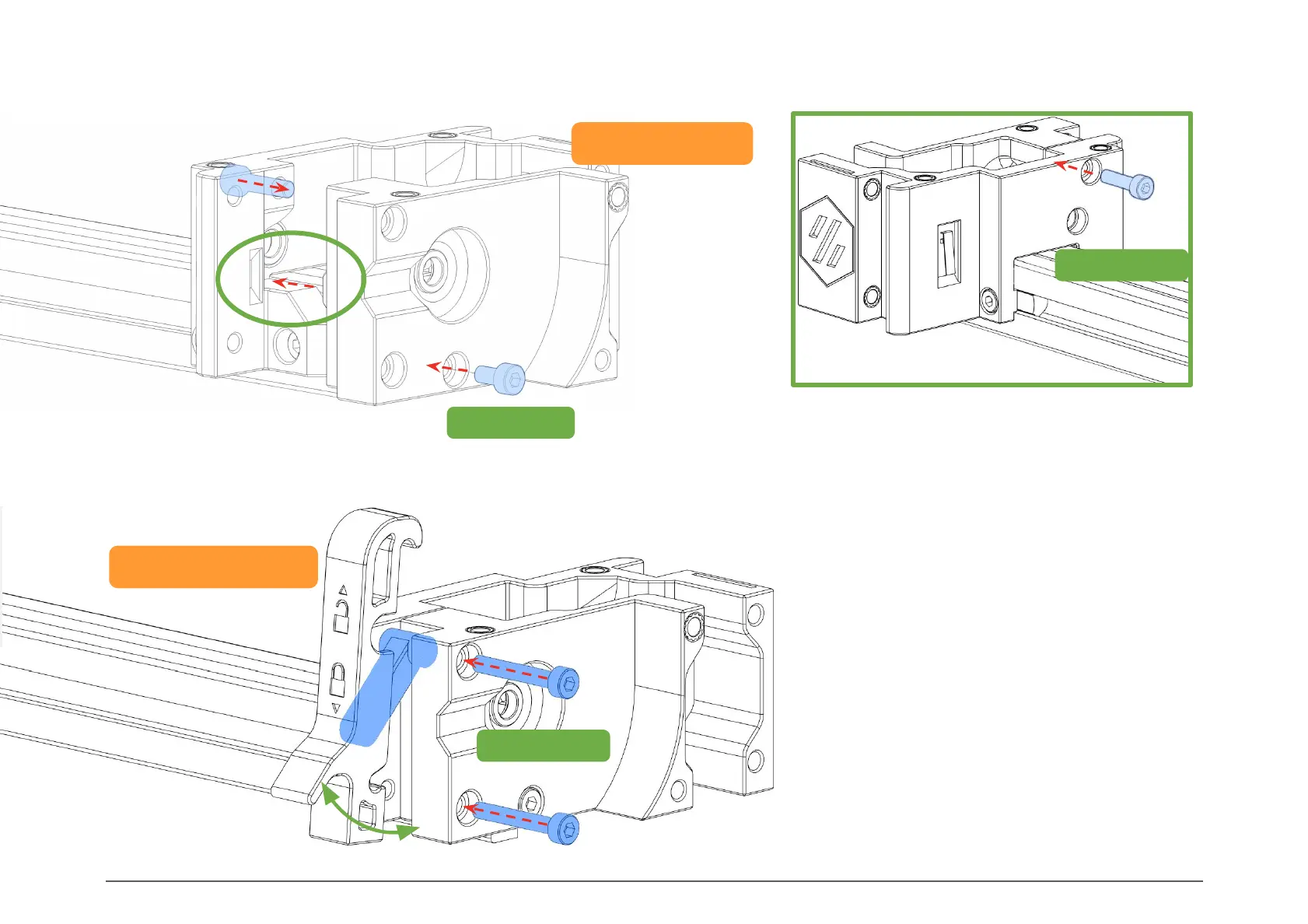

ALIGNMENT
Align the Gear_Box_Front and Gear_Box_Back with the
keyed slot, and secure the Gear_Box_Back with 1 M3x6mm
screw from the back, and 1 M3x12 screw from the front.
3434
GEARBOX
M3x6 SHCS
Gear_Box_Back
[a]_Side_Latch_x2 †
LATCH SCREWS
Extend the arm of the Side_Latch and hold it
in place while you thread the top M3x20mm
screw. Screw the top screw all the way in,
then screw in the bottom M3x20mm screw.
With both screws in place, close the latch.
Don’t over tighten the two screws; you
should be able to lock and unlock the latch
without trouble.
M3x20 SHCS
M3x12 SHCS
GEARBOX BACK & FRONT LATCH
