CAD version: ERCF V2
GEAR BELT

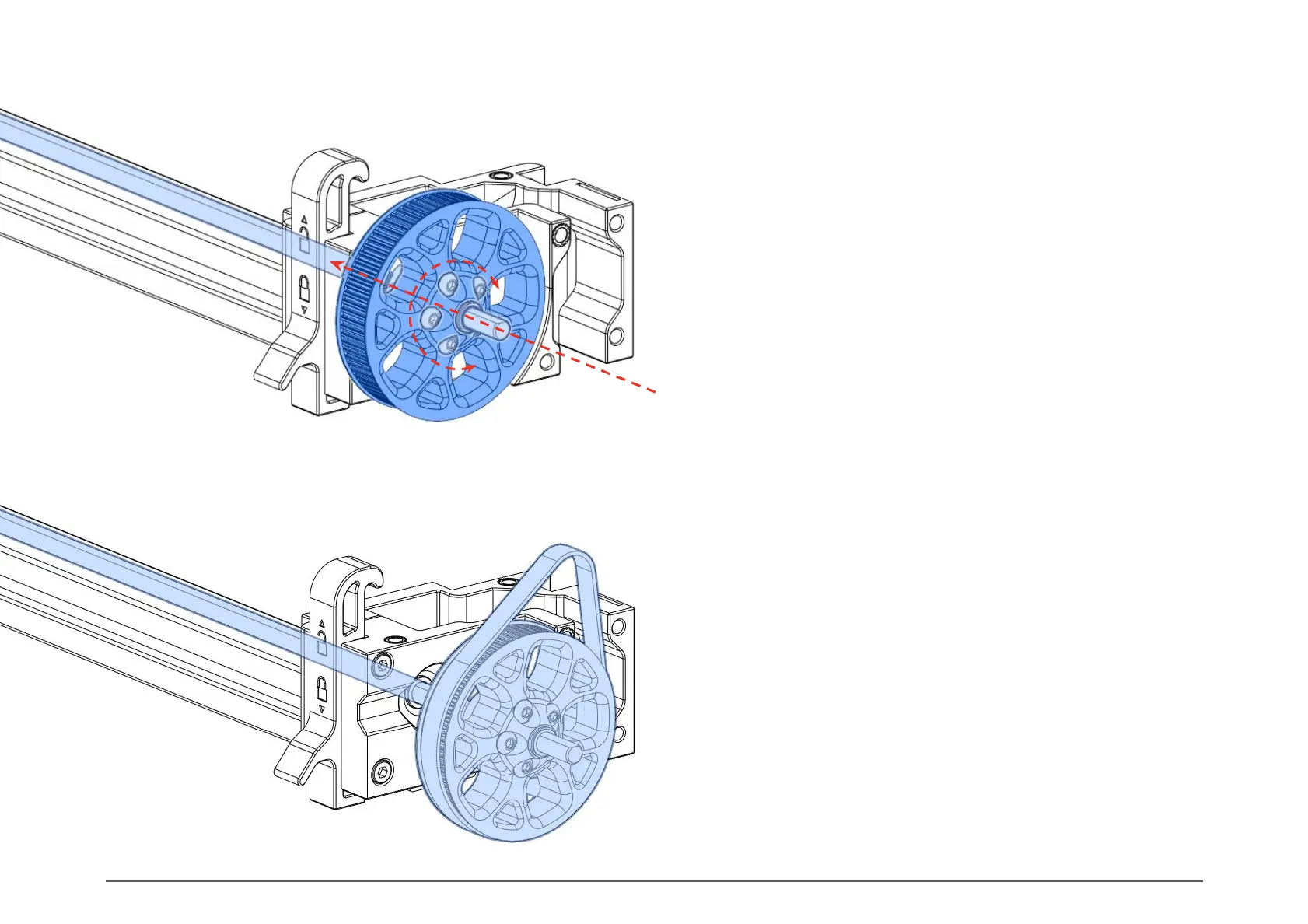

Now we need to install the 188mm GT2 belt loop around
the M4_80T_Wheel. It will be impossible to do so after the
next steps. You can either spin it onto the wheel, or pull the
Drive Shaft back out of the Gearbox and wrap the belt
around the wheel before re-inserting the Drive Shaft.
If you pull out either of the bearings, make sure they re-seat
correctly. It may be necessary to fully remove the Drive Shaft
to re-seat the bearings.
3838
GEARBOX
ASSEMBLY
Gently insert the D-Cut shaft assembly through the Gearbox
bearings.
Depending on how well your D-Cut shaft has been
machined, you may need to use a fine file or sandpaper to
smooth machined edges to allow it to slide smoothly
through the bearings and Bondtech gears.
Adjust the M4_80T_Wheel so it spins with as little wobble
as possible, and doesn’t rub. Use the back edge of the
Gearbox as a guide and gently adjust the wheel / tweak
BHCS screw tension until you are satisfied. It will never be
perfect.
We will add the knob later!
GEAR DRIVE BELT
